TitanScan 3D Scanner, TitanScan (1200x900mm)

Name: TitanScan 3D Scanner, TitanScan (1200x900mm)
Brand: SHINING 3D

ModelTitanScan

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Model	TitanScan
Application	large-scale objects scanning in defense enterprise, aerospace, automobile industry
Single scanning range	600mm450mm – 1200mm900mm(adjustable)
Accuracy	0.06mm-0.12mm
Resolution (Point Space)	0.47mm-0.94mm
Scannable Object size	300mm-3000mm
Scanning type	Non-contact & white light (as the form of photographed)
Image resolution	1.31 mega Pixels
Data format	ASC，STL
Scanning time	＜ 5S
Way of registration	Automatic and best-fit registration together

Model	TitanScan
Application	large-scale objects scanning in defense enterprise, aerospace, automobile industry
Single scanning range	600mm450mm – 1200mm900mm(adjustable)
Accuracy	0.06mm-0.12mm
Resolution (Point Space)	0.47mm-0.94mm
Scannable Object size	300mm-3000mm
Scanning type	Non-contact & white light (as the form of photographed)
Image resolution	1.31 mega Pixels
Data format	ASC，STL
Scanning time	＜ 5S
Way of registration	Automatic and best-fit registration together

1. Large scale 3D scanning technology greatly raising the work efficiency

The biggest single scanning range of TitanScan 3D scanner is 1200mm*900mm (adjustable to 600mm*450mm). It is able to scan the large-scale object models by once only, reducing the workload, improving the measurement efficiency.

Sample 3D data

2. 3D measuring accuracy guaranteed

Compared to the 3D scanning devices with small range, TitanScan large-scale 3D scanner can help users reducing the frequency of scanning, decreasing accumulated error. With the feature of automatic – registration, it can improve 3D measuring accuracy for large scale objects.

Sample 3D data

3. User friendly design, easy to use

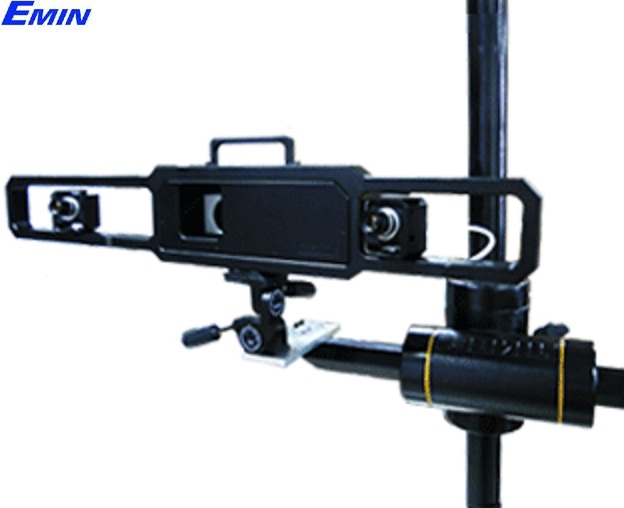

TitanScan 3D scanner optimizes the usage experience, improves the convenience of 3D scanning workflow by adopting holistic handles design.

4. Dust proof design, prolong the lifetime and decrease the maintain cost

The shell is made from aluminums alloy materials, partial made of ABS and acrylic materials. Adopt sealing design to keep away dust.
