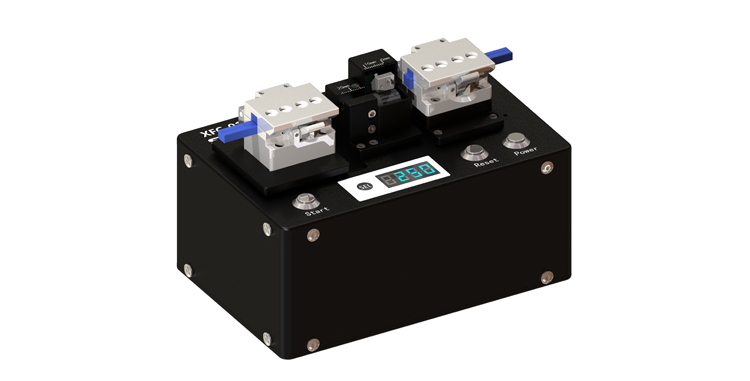

Shinho XFC-01 Large Diameter Optical Fiber Cleaver (2~30μm)

Cladding Diameter: 200μm~300μm

Coating Diameter: 300μm~400μm

Cleaved Length : 2~30μm

Cleaved Angle: Typical value 0.5°

Cleaved Method: Applying tension and blade scoring

Blade and Life: 5~40mm

Blade life: Diamond blades, 10 cutting positions, single cutting point life 2000 times

Power Supply: Adaptor, input: AC100-240V(50/60Hz), output：DC11~13.5V 5A

Battery: 3400mAh

Dimensions: 168*111*116mm

Weight: 1.97kg

Operation condition: Humidity: 0~95%, Temperature: 0~+40℃（no condensation）

Storage Condition: Humidity: 0~95%, Temperature:-40~+80℃（no condensation）

Standard Packages:

XFC-01 Main Machine: 1unit

Power Adapter: 1pc

1.5 Hex Key: 1pc

1.27 Hex Key: 1pc

Certificate of Conformity: 1pc

User Manual: 1pc
