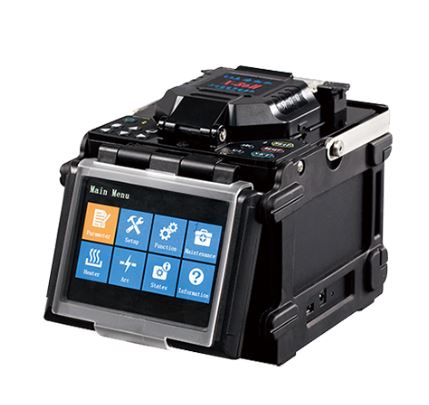

Shinho X-86H Fusion Splicer(Splicing Time 8s)

Applicable fibers : SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Splice mode : 40 splicing modes
Splice loss : 0.02db
Splicing Time : 6 seconds
Heating Time : 26 seconds
Splice result storage : Last 4000 splice
Power : Adaptor, input: AC 100-240V ( 50/60HZ ) , output: DC 11~13.5V
Dipslay : 5,7 inch LCD
Size / weight : 190mm(L)×170mm(W )×170mm(H)/ 3.1kg Include Batery
Temperature : -10 to 50deg C, Humidity : 0 to 95%RH, non-dew
Terminals : USB 2.0 (Mini-B type) connector for PC communication. Adaptor
Standard Equipment Parts: Carry Case, Fiber Cleaver, Covered Cable Striping Plier, Miller Clamp, AC Power Adapte,CD Manual
