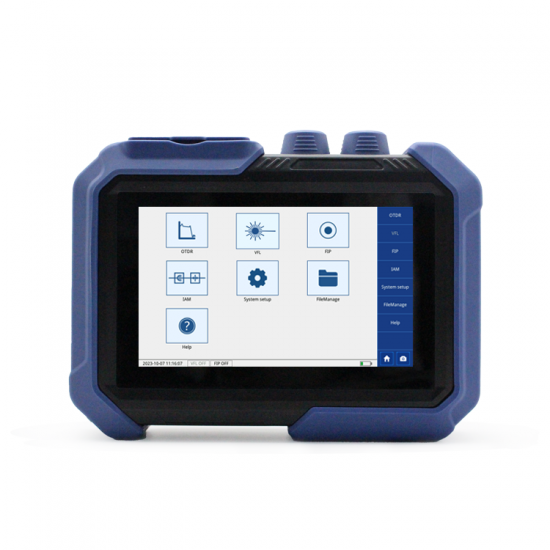

Shinho X-70-D36 Handheld OTDR (1310/1550; 36/34)

Wavelength (nm): 1310/1550

Dynamic Range (dB): 36/34

Pulse Width (ns): 5,10, 20, 40, 80,160, 320, 640, 1280, 2560, 5120, 10240, 20480

Event Blind Zone (m)3: 1m

Attenuation Blind Zone (m)3: 4m

Linearity (dB/dB): ±0.05 dB/ dB

Sampling Resolution Ratio (m): 0.125 to 8

Loss Resolution ratio (dB): 0.01

Sampling Point: 64K

Distance Uncertainty (m): ±(1 m + 5×10-5× distance + sampling interval)

Distance Scope(km): 0.3 to 200

Duration of Measurement: Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min.

Dimension/Display: 234(H)×65(W)×177(D)mm/7 " touch screen 1024*600

Weight: 1.3kg

Optical Interface: FC/UPC (PC, and APC are available)

Temperature: Running temperature -10℃ to 50℃, Memory temperature -40℃ to 70℃

Relative Humidity: 0% to 95% (non condensation)

Power Supply: Lithium battery; continuing working duration ≥ 24 hours

Storage of Trace: Internal memory 16G, > 20000 pieces

Data Interface: USB interface

Package: OTDR, Power Adapter, Power Cord, Strap, User Manual, SD Card, Touch Pen, Carrying Bag
