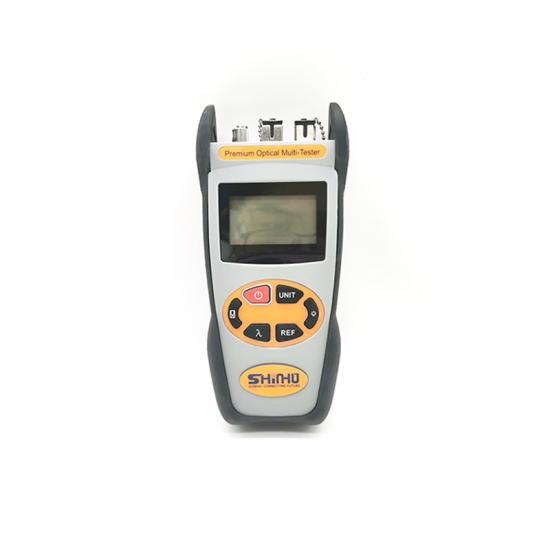

Shinho X-5011-C Optical Power Meter (-50~+26dBm)

Optical Power Meter Module:

Detector Type: InGaAs

Measurement Range(dBm): -50~+26

Uncertainty: 0.05

Calibrated wavelengths(nm): 850,1300,1310,1490,1550,1625

Resolution(dB): 0.01

Date storage capacity: 1000

Optical Connector: FC/SC/2.5mm universal, for LC we provide FC-LC Hybrid adaptor

Optical Light Source Module (Optional):

Emitter Type: FP-LD

Wavelengths(nm): 850/1300

Ouput Power(dBm): ≥-7

Spectral Width: ≤10nm

Output Stability: ±0.05dB/15mins; ±0.1dB/ 8hours

Optical Connector: FC/ SC, for LC we provide FC-LC Hybrid adaptor

Visual Fault Locator (Optional):

Wavelength(nm): 650±10

Output power(mW): 10

General Specifications of Multi Tester:

Power Supply: Alkaline Battery(3 AA 1.5V batteries)

Auto-off time: 10mins

Operating Temperature(℃): -10~+60

Storage Temperature(℃): -25~+70
