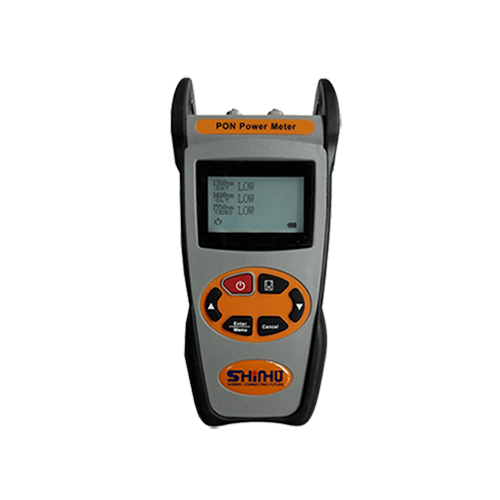

Shinho X-5006 PON Power Meter (1310/1490/1550nm)

1310 measurement:

Wavelength: 1310nm

Pass Zone(nm): 1260～1360

Isolation (dB): >40@1490

Isolation(dB): >40@1550

Measurement Range(dBm): -40～+10

1490 measurement:

Wavelength: 1490nm

Pass Zone(nm): 1470～1505

Isolation (dB): >30@1310

Isolation(dB): >40@1559

Measurement Range(dBm): -40～+10

1550 measurement:

Wavelength: 1550nm

Pass Zone(nm): 1535～1570

Isolation (dB): >40@1310

Isolation(dB): >40@1490

Measurement Range(dBm): -40～+20

Measurement Accuracy:

Connatural uncertainty(dB): ±0.5

Linearity(dB): ±0.1

Passing through insertion Loss(dB): <1.5

General Information:

Detector Type: InGaAs

Optical Connector: FC/SC Interchangeable

Fiber Type: 9/125um

Display: LCD:128*64

Measurement Unit: dB/dBm/xW

Resolution (dB): 0.01

Power Supply: 3 AA1.5V battery

Operation Temperature(℃): -10～60

Storage temperature(℃): -25～70

Dimension(mm): 200 X90 X50

Weight(g): 285
