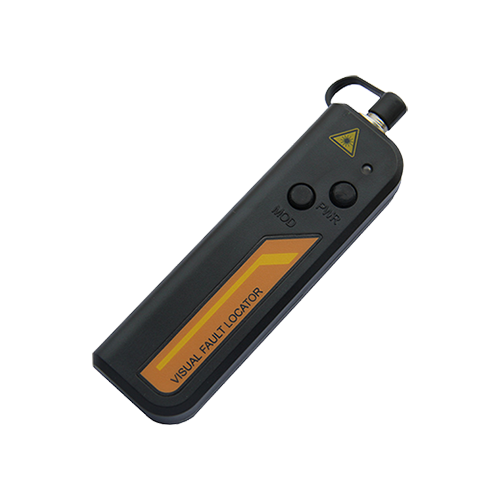

Shinho X-5003 Mini Visual Fault Locator (650nm±10nm)
ManufacturerShinho(View more products from this manufacturer)
ModelX-5003
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Central Wavelength: 650nm±10nm
Emitter Type: FP-LD
Output Power: 1mw or 10mw
Optical Connector: 2.5mm universal connector For 1.25mm connectors, FC-1.25mm Hybrid adaptor,can be optional on customer requests
Operating Model: Both CW and Pulse(2Hz) available
Power Supply: Two AAA alkaline batteries
Battery Operating Time: 650nm@1mw ≥45hours; 650nm@10mw≥15hours test with Panasonic LR6 AAA ALKALINE battery
Operating Temperature: -10~+60 (℃)
Storage Temperature: -25~+70 (℃)
Dimension (mm): 115*45*27
Weight: 50g(Without Batteries)
