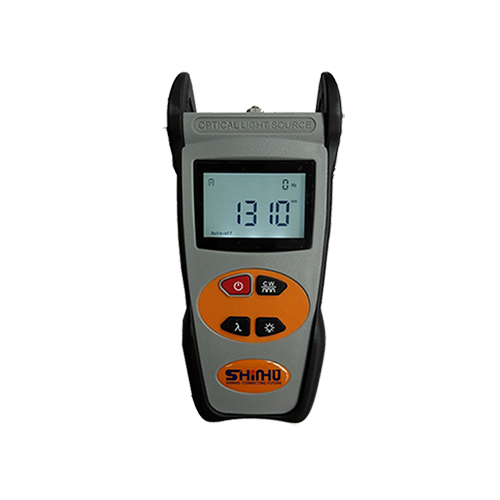

Shinho X-5002 Optical Light Source (1310/1550nm)
ManufacturerShinho(View more products from this manufacturer)
ModelX-5002
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Operating wavelength(nm): 1310/1550 (others specify on requests, Max wavelength is 5）
Applicable fiber: SM ,MM
Laser type: FP-LD(others specify on requests)
Maximum Output Power(dBm): -7(can be adjustable, others specify)
Stability(dB, 15min, 20℃): ±0.1
Stability(dB, 30min, 20℃): ±0.05
Modulation(Hz): CW, 270, 1K, 2K
Fiber Port: FC/PC or FC,SC,ST interchangeable
Alkaline Battery: 3XAA, 1.5V
Battery Operating time(h): 45
Operation Temperature(℃): -10～+60
Storage Temperature(℃): -25～+70
Outline size（mm）: 200 X90 X50
Weight(g): 285
