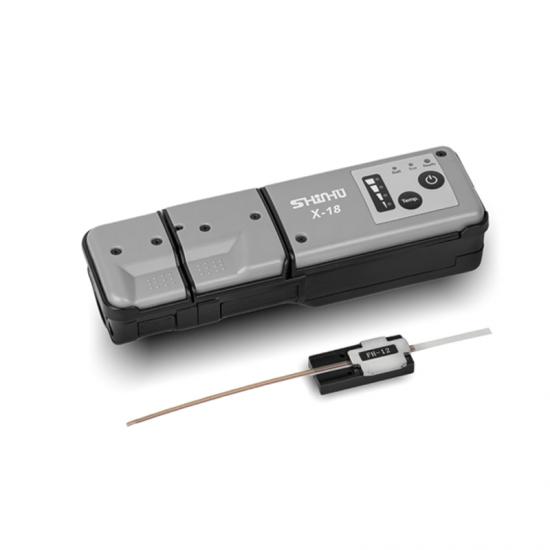

Shinho X-18 Ribbon Fiber Thermal Stripper

Applicable Fiber: Glass optical fibers, capillary

Coating material: UV curable resin

Coating diameter: Single core: 0.25~0.4mm; 2~12 ribbon fiber: 0.3~0.4mm

Cladding diameter: 125µm

Coating stripping length: Max 30mm

Fiber types: Single fiber, ribbon fiber

Fiber holder type: FH-2, FH-4, FH-6, FH-8, FH-10, FH-12

Heating mode: Normal mode, Eco mode

Temperature setting: Default: 80°C. Normal mode: 60℃, 80℃ 100℃, 120℃.

Typical heating time: Normal mode: 10 seconds for first stripping Power saving mode: 12~13secs

Battery capacity: 2000mAh Li-battery. Full charge time: 3 hours. Support approx. 600 cycles continuous stripping once fully charged at default temperature.

Power supply: AC adapter, input: AC100-240V(50/60HZ), output: DC12V-1A

Operation environment: Altitude: 0-5000m, Relative humidity: 0-95%, Temperature: 0℃ ~ +40 ℃, Wind speed: 15m/s maximum

Dimension/Weight: 155mm (L)×50mm (W)×40mm (H) /NW:267g（including battery）
