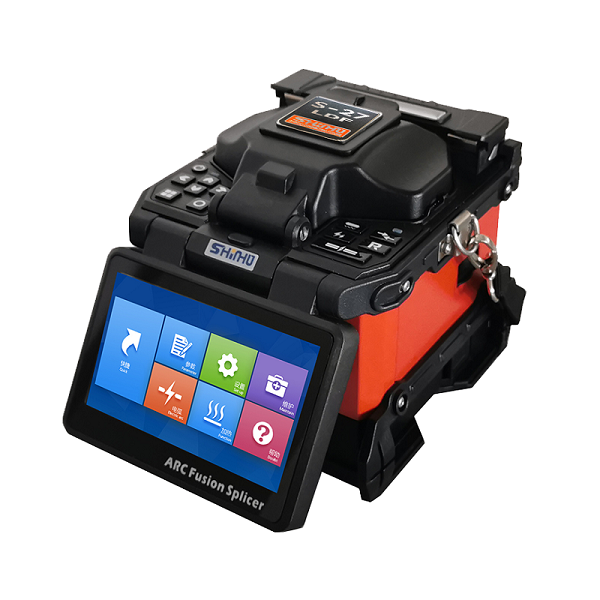

Shinho S27 Large Diameter Fiber Specialty Fiber Fusion Splicer

Alignment method: Clad to clad

Applicable fiber: SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655)

Cladding diameter: S-27-250: 125~250µm; S-27-400: 250~400µm

Coating diameter: 250～1000µm

Typical splice loss: SM: 0.02dB; MM: 0.01dB; DS: 0.04dB; NZDS: 0.04dB

Return loss: ＞60dB

Splicing program: 40 groups

Operation mode: Manual/ Automatic

Auto- heating: Available

Typical splice time: 14seconds

Typical heating time: 24 seconds for 60mm/40mm heating tube

Fiber magnification: X or Y single fiber image 120X，X and Y double image 60X

Viewing display: Dualhighsensitivitycamera, 5 inch 800*480 LCD Monitor

Data storage: 4000 groups data records and 100 group images

Loss evaluation: Available

Tension test: 1.8～2.2N

Interface: GUI menu interface, easy for operation

Power supply: Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V

Electrode life: ＞3000 times discharge (125um)，＞1000 times discharge (＞125um)

Terminals: Micro-USB 2.0 port, forsoftwareupgrading, records exporting

Operating condition: Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃～+50℃; Wind: max 15m/s

Dimension: 155mm (L)×144mm (W)×155mm (H)

Weight: 2.3kg (including battery)
