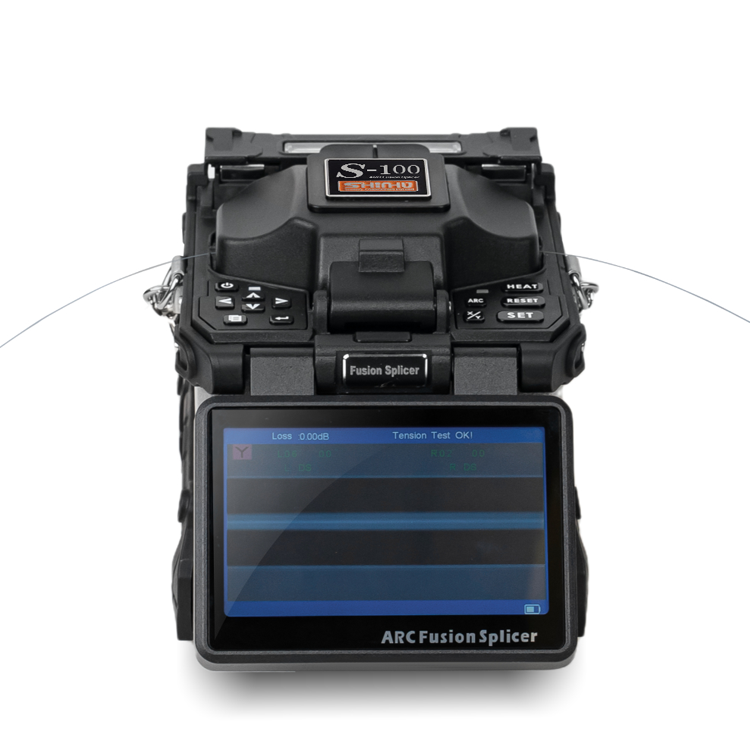

Shinho S-100 Small Diameter Fusion Splicer (Splicing Time 6-12s)

Applicable fiber: SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), EDFA, others(including G.657)

Diameter of cladding: 50 -80μm

Diameter of coating: 100-160μm

Typical splice loss: 50μm-50μm＜0.2dB; 80μm-50μm＜0.2dB

Return loss: ＞ 60dB

Fibe cleaved length: 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-3000um)

Splicing program: 100 groups

Operate mode: Automatic/Manual

Auto-heating: Available

Typical splicing time: 6-12 seconds

Typical heating time: 18-26 seconds for 60mm and 40mm shrinkable sleeves

Fiber magnification: 400X (X or Y view), 200X (X and Y view)

Display screen: 5.0 inch color LCD monitor, touch screen

Date storage: Last 20000 results and 100 images

Loss evaluation: Available

Tension test: 1.8-2.2N

Interface: GUI menu interface, easy for operation

Battery: 5200mAh Li-battery, typical 300 cycles splicing and heating

Power supply: Adapter, input: AC 100-240(50/60Hz), output: DC 11-13.5V

Electrodes life: More than 5000 ARC discharges, can be replaced conveniently

Ternimal: USB2.0 port, for uploading splicer results and upgrading software

Operating conditions: Altitude: 0-5000m, Humidity: 0-95%, Operating Temperature: -20℃~+50℃, Storage temperature -25℃~+60℃；Wind speed: Max 15m/s

Dimension: 155mm(L) * 144mm(W) * 155mm(H) (including rubber armor)

Weight: 2.37kg (including battery)
