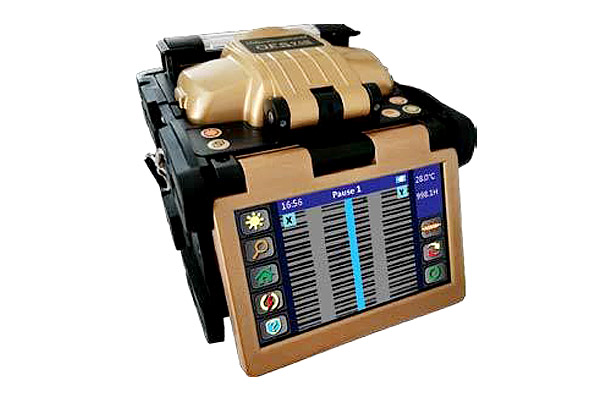

ShinewayTech OFS-95R Ribbon Fiber Fusion Splicer

Fiber Type: SMF (G.652), MMF (G.651), DSF (G.653), NZ-DSF (G.655), BIF (G.657), EDF

Protection Sleeve: 40mm - 60mm

Splicing Principle: Arc

Number of Fiber Cores: 1、 2、 4、 6、 8、 10、 12

Splice Control: Auto and Manual Splicing

Arc Optimization: Yes

Display Mode: X, Y, X+Y

User Interface: Graphical interface, multiple language support

Splice Result: Auto Splice Result (Loss) Calculation and Display

Data: 5000 Splice Records (CSV Format), 100 Screenshots

Data Port: USB, Driver-free

Fiber Diameter: Cladding: 80~150μm, Coating: 100~1000μm

Cleave Length: 10mm~13mm

Splice Loss: MMF ≦ 0.02dB (Typical); SMF/BIF ≦ 0.05dB (Typical);

: DSF/NZDSF/EDF ≦ 0.08dB (Typical)

Return Loss: >60dB

Splice Time: ≤15s

Heating Time: ≤25s, Adjustable

Zoom: 20x ~50x

Electrode Life: ≥3000 Splices

Tension Test: ≥2N

Start-up Time: 7s

Power Supply: 220V±10%, 50Hz; Rechargeable Lithium Battery

Battery Life: ≥100 Splicing and Heating

Chanrging Time: ≤4 Hours

Size: 125x125x135mm (L x W x H)

Weight: 1.8Kg (With Battery)

Work Temperature: -20℃～+55℃

Storage Temperature: -40℃～+70℃

Humidity: ≤95% (Non-condensing)

Altitude: 0 m～3000 m

Wind Speed: ≤15 m/s

Configuration:

Splicer Unit x 1, Fiber Holder x 1 (Pair), Lithium Battery x 1, PowerAdapter x 1, Fiber Cleaver x 1, Cooling Tray x 1, USB Cable x 1, Carry Case x 1, Quick Reference
