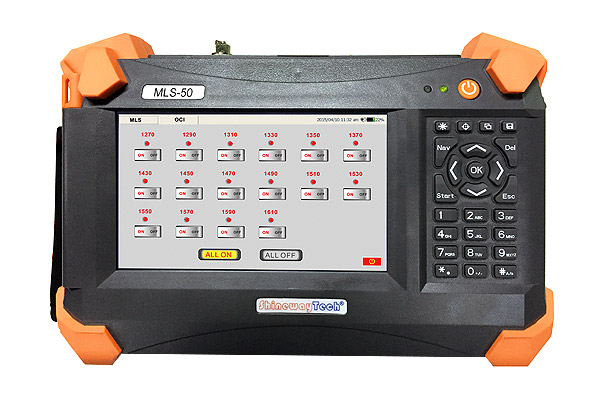

ShinewayTech MLS-50B CWDM Multi-wavelength Laser Source (1270 ~1610 nm)

Wavelength (±20nm): 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610nm

Display: 7 inch TFT touch screen (800x480)

Emitter Type: DFB-LD

Spectrum Width: ≤ 5nm

Output Power: ≥ -3dBm

Stability: ≤±0.05dB/5min   ≤±0.15dB/8hour

Connector Type: FC/UPC (Interchangeable SC, ST)

Fiber Type: Multi / Single mode Fiber

Power Supply: Rechargeable Li-on battery/AC Adapter

Battery Life: 10 hours continuous operation

Operating Temperature: 0℃ ~ 50℃

Storage Temperature: -20℃ ~ 70℃

Relative Humidity: 0 to 95% (non-condensing)

Weight: 2.1 KG

Dimentions(LxWxH): 290x175x75mm

 * Specifications subject to change without notice:

Ordering Information:

Standard Package Includes::

Instrument, FC/PC connector, Li-on rechargeable battery, AC adapter, Soft carrying case, Warranty card, Certificate of calibration, Quick reference guide.
