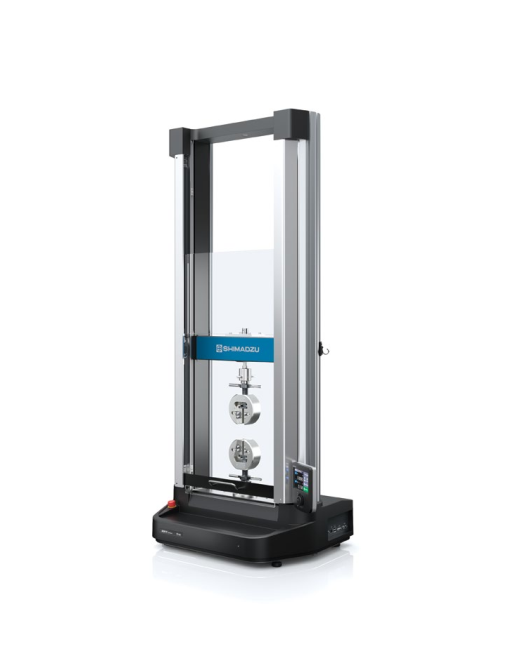

Shimadzu AGS-10KNXVD Universal Testing Machine (10kN)

Capacity max: 10kN

Loading method: Direct high-precision constant-speed strain control method using precision ball screw drive with no backlash

Test Force: Accuracy Standard Accuracy Type 1/500 Within ±1 % of the displayed test force (within the range of 1/1 to 1/500 of the rated load cell capacity) JIS B7721 class 1, EN 10002-2 grade 1, ISO 7500-1 class 1, BS 1610 class 1, complies with ASTM E4 (*1)

Test Force calibration: Select from automatic test force calibration, tension, or tension and compression

Crosshead Speed Range: 0.0005 to 1,500 mm/min (can be set as desired, not in steps)

Maximum return speed: 1650 mm/min

Crosshead Speed accuracy: ± 0.1%

Crosshead Speed and Allowable Test: Force Up to the load cell capacity for all speeds

Crosshead-Table Clearance (Tensile stroke):

Max. 1180 mm (740 mm)

Effective Test Width: 425 mm

Crosshead Position Detection display methods

Digital display (display resolution: 0.001 mm)

Crosshead Position Detection Precision of

Crosshead Positional Accuracy: Within ±0.1 % or within ±0.01 mm of indicated value, whichever is greater

Sampling Rate: Maximum 0.2 msec

Main Frame size (WxDxH): W657 mm × D525 mm × H1,562 mm

Weight: 75 kg

Includes:

336-04023-09: Load cell and Joint Kit, CLASS1 tension calibration 1/500 1 kN

345-48280-06: TRAPEZIUMX-V Single Lite For AGS-V Series

346-52327-04: SCG-1kNA, Standard Screw-Type Flat Grips 1kN

PC&Printer: Local Purchase DELL/HP model, Window 10/11 64bit licence; core i5, RAM8GB, Monitor 21inch, Office licence, black – white)
