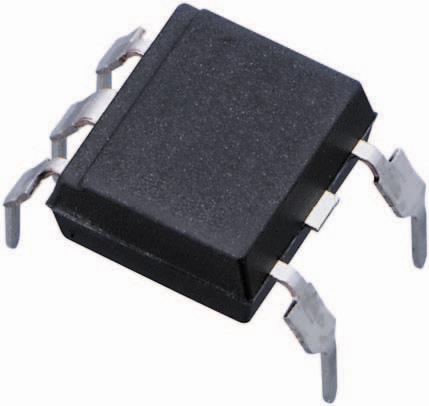

Sharp Microelectronics PC3SD11NTZBH Triac & SCR Output Optocouplers Phototriac Coupler
ModelPC3SD11NTZBH
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Output Type: PhotoTriac
Mounting Style: Through Hole
Isolation Voltage: 5000 Vrms
Number of Channels: 1 Channel
If - Forward Current: 20 mA
Maximum Turn-On Time: 100 us
Vf - Forward Voltage: 1.2 V
Zero-Crossing Circuit: Without Zero-Crossing Circuit
Maximum Trigger Current: 7 mA
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 30 C
On-State RMS Current - It RMS: 100 mA
Off-state Output Voltage - VDRM: 600 V
