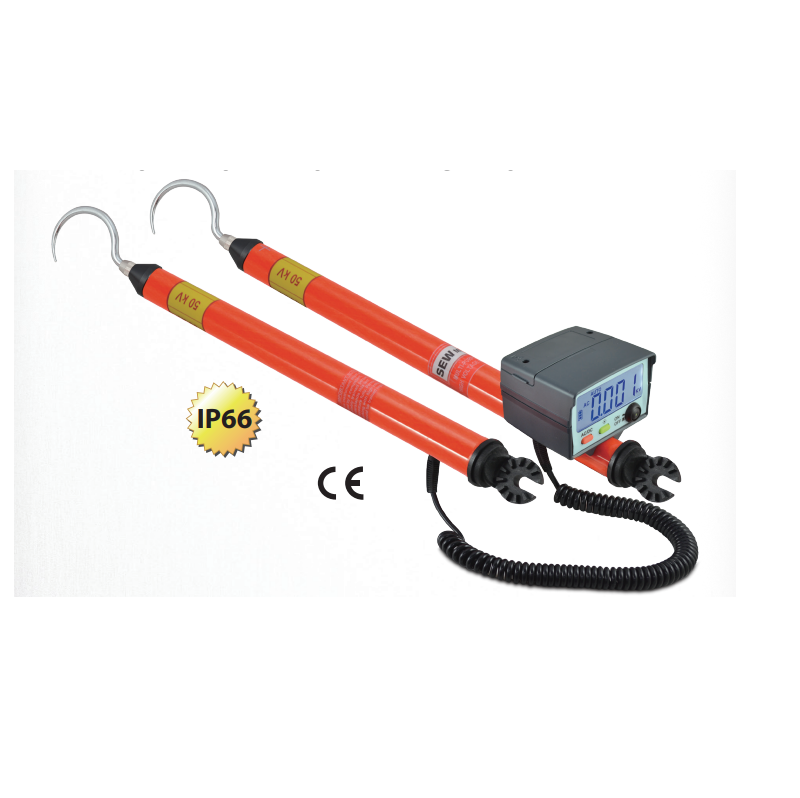

SEW MDP-50K Multi-purpose Digital High Voltage Phasing Meter (4.000kV~50.0kV AC/DC)

FEATURES

- AC 50kV and DC 50kV measurement with direct reading.

- 4000-count LCD.

- Input impedance: 400 Mohm

- Auto-ranging: AC: 4.000kV / 40.00kV / 50.0kV

DC: 4.000kV / 40.00kV / 50.0kV

- MDP-50K must be connected with an approved hot stick, such as HS-175, HS-120, HS-120R.

- Polarity indication: Positive / Negative

- Backlight function

- Auto power off

- Power source: 1.5V(AA) alkaline battery × 2.

- Low battery indication(Multi-level).

- Protection class: IP66

AC Voltage

Ranges: 4.000 kV

40.00 kV

50.0 kV

Resolution: 0.001 kV

0.01 kV

0.1 kV

Accuracy: 0~30 kV ±(4.0%rdg+0.1kV)

30 kV~50 kV ±(5.0%rdg+0.5kV)

DC Voltage

Ranges: 4.000 kV

40.00 kV

50.0 kV

Resolution: 0.001 kV

0.01 kV

0.1 kV

Accuracy: 0~20 kV ±(2.0%rdg+0.08kV)

20 kV ~ 50 kV ±(3.0%rdg+0.1kV)

General

- Low battery indication: V (Multi-level)

- Operating temperature & humidity: 0°C~40°C, 80% Max.

- Storage temperature & humidity: -10°C~50°C, 80% Max.

- Dimensions: Master stick: 490(L) × 101(W) × 118(D)mm

Slave stick: 490(L) × 35(W) × 35(D)mm

- Weight (battery included): Approx. 1.35kg

- Power source: 1.5V (AA) Alkaline battery × 2

Optional Accessories: Hot Sticks
