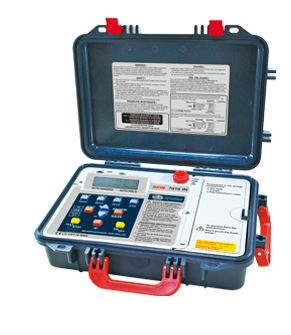

SEW 7016 IN Insulation Tester(15kV, 30TΩ)

Test voltage (DC V): 1kV, 5kV, 10kV, 15kV

Measuring ranges:

1000GΩ/0.5kV

1000GΩ at 0.5kV ~ 30TΩ at 15kV

Accuracy:

1kV: 0~200GΩ; 5kV: 0~1TΩ; 10kV: 0~2TΩ; 15kV: 0~3TΩ là ±(5%rdg+5dgt)

1kV: 200GΩ~2TΩ; 5kV: 1TΩ~10TΩ; 10kV: 2TΩ~20TΩ; 15kV: 3TΩ~30TΩ là ±20%

Resolution1GΩ : 0.001GΩ

10GΩ : 0.01GΩ; 100GΩ : 0.1GΩ; 1000GΩ : 1GΩ; 10TΩ : 10GΩ; 30TΩ : 100GΩ

Short circuit current: up to 5mA

PI (Polarization Index)V

DAR (Dielectric Absorption Ratio)V

Dimensions: 430(L) x 324(W) x 127(D)mm

Weight: 6.56kg

Power source:Input : 100-240Vac, 0.4A, 50-60Hz

Output : 24Vdc, 0.62A
