Product image

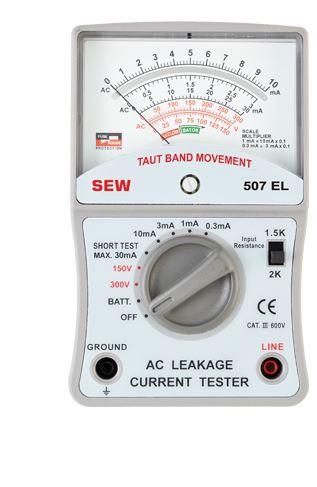

SEW 507 EL Analog Leakage Meters (AC, 0.3mA-30mA)

ManufacturerSEW(View more products from this manufacturer)
Model507 EL
OriginTaiwan
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available

Measuring range: 0.3mA-1mA-3mA-10mA-30mA
Accuracy: ±2% of full scale
Input resistance: 1.5kΩ
AC Voltage range: 0-150V/ 0-300V
Accuracy: ±2% of full scale
Dimensions: 160(L) × 100(W) × 45(D)mm
Weight:360g
Power source: 9V(6F22) × 1

FEATURES
● High quality movement.
● Compact and lightweight; easy to use and store.
● Mirror scale: for easier viewing & reading.
● Built-in stand makes reading and measuring easy.
● 200μA full scale value.
● Fuse-protected.
● Low battery indication.

  SPECIFICATIONS

  AC Leakage Current
  Measuring range   0.3mA-1mA-3mA-10mA-30mA
  Accuracy   ±2% of full scale
  Input resistance   1.5kΩ / 2kΩ
  AC Voltage
  Measuring range   0-150 / 0-300V
  Accuracy   ±2% of full scale
  Input resistance   150V      500kΩ
  300V      1MΩ
  General
  Low battery indication   Battery check indicate good battery from 7Vdc to
  9Vdc during a load test of 2mA
  Dimensions   160(L) × 100(W) × 45(D)mm
  Weight (battery included)   Approx. 370g
  Power source   9V(6F22) × 1
  Safety standard   EN 61010-1 CAT III 600V
  EN 61326-1
