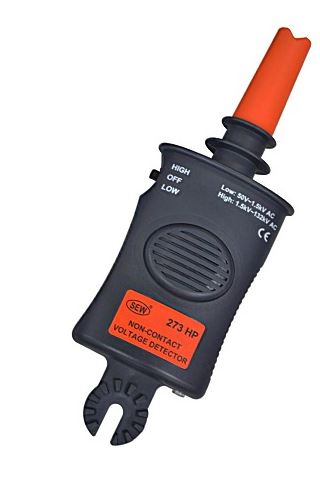

SEW 273 HP Non-Contact High Voltage Detector (132kV)

2 ranges for selection: LOW 50V~1.5kV
HIGH 1.5kV~132kV
There is no power consumption in off mode: 0uA
Nice mechanical slide switch for function selection: HIGH/OFF/LOW
The power consumption in low voltage detection mode: Less than 20mA
The power consumption in high voltage detection mode: Less than 20mA
Bright LED and audible alarm sound when voltage is present
Lightweight, robust and compact
Efficient and easy to use
Users have to use the Hot Stick when test high voltages between 1.5kV~132kV
Optional accessories:
HS-175 Telescopic hot stick (triangle-type)
HS-120 Hot Stick
Operating temperature: 0ºC~50ºC
Dimensions: 245 x 80 x 37 mm
Weight (battery included): 175g
Power source: 9V(6LF22) x 1 Alkaline battery
Safety standards: EN 61326-1, EN 61000-4-2, EN 61000-4-3
