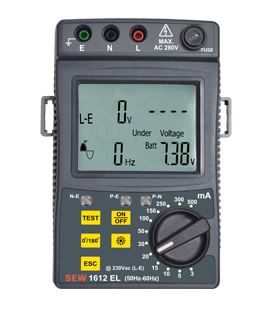

Sew 1612 EL DIGITAL RCD TESTER

Operating voltage (L-E)(50Hz or 60 Hz)

Version A : 240 Vac

Version B : 230 Vac

Version C : 220 Vac

Version D : 110 Vac

Current settings: 3mA, 5mA, 10mA, 15mA, 20mA, 30mA, 50mA, 100mA, 150mA, 250mA, 300mA, 500mA.

Current selection: Rotary switch selector

Phase angle setting: 0° and 180° selectable

Wiring correctness indication: Yes (LEDs)

Trip indicator: Yes (LCD)

Over-temperature protection: Yes

Voltmeter (L-E): 10Vac ~ 280Vac (50Hz or 60Hz)

Timer resolution: 1ms (Max. Time=2.999s)

Timer accuracy: ±2ms

Current accuracy: ±5% ±1mA

Voltmeter resolution: 1Vac

Voltmeter accuracy: ±2%±1Vac

Dimensions: 163(L) × 122(W) × 67(D)mm

Weight (battery included): Approx. 612g

Power source: 1.5V (AA) × 6 (Alkaline battery)
