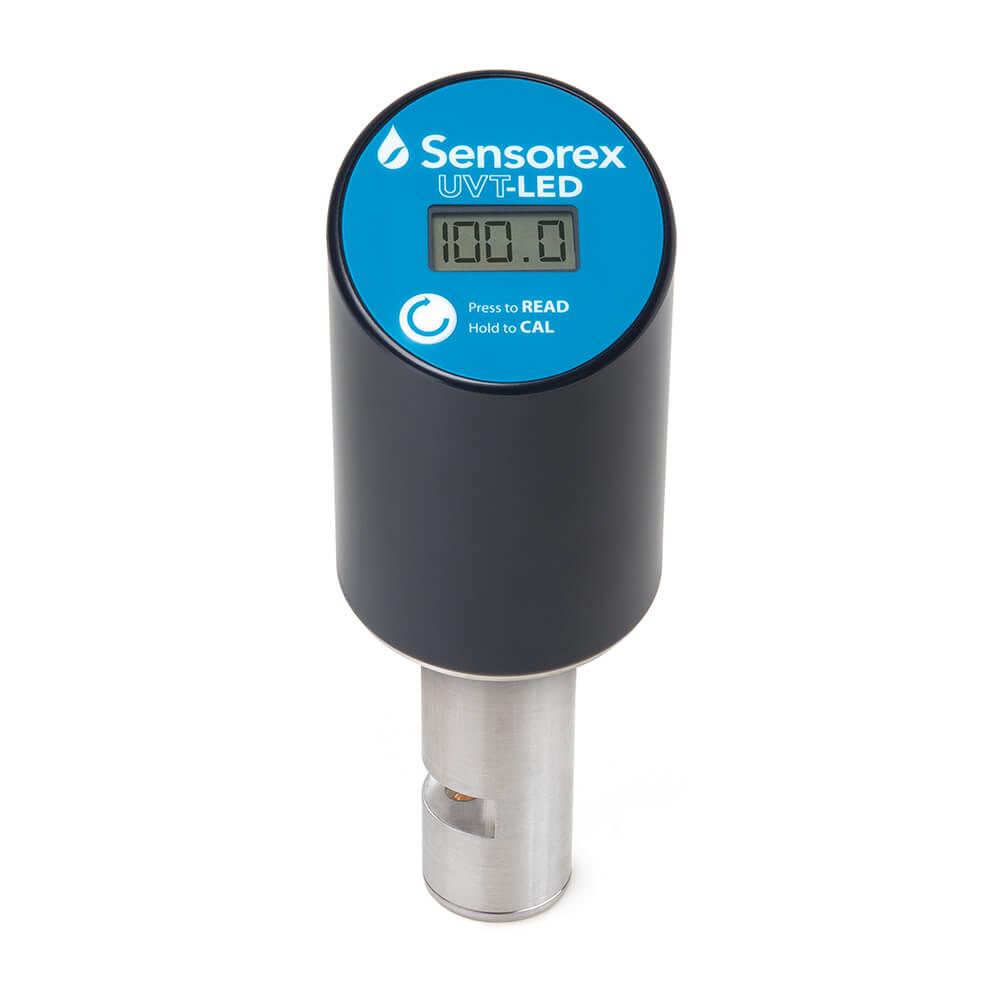

Sensorex UVT-LED-PW Online Process UV Transmittance Monitor (10%-100%T, 4-20mA)

Measurement Technique: UV absorption method (single beam technique), reagent-free
Wavelength: 254nm
Measurement Path Length: 1cm
Output: 4-20 mA
Power Supply: 24V DC (included)
Accuracy: 1.0% T
Resolution: 0.1% T
Display: LCD with LED Backlight
Measurement Range: 10% - 100% T
Measurement Interval: 60 seconds
Sample Flow Rate: N/A
Inspection Interval: 6 months
User Maintenance: 1 hour / month, typical
IP Ingress Rating: IP66
Dimensions: 7.55inch H × 2.56inch Dia
Weight: 1.6 lbs (0.73 kg)

About:
UVT-LED-PW Online Process UV Transmittance Monitor
Power/Signal Cable
Cleaning Swab

Datasheet

Quick start guide
