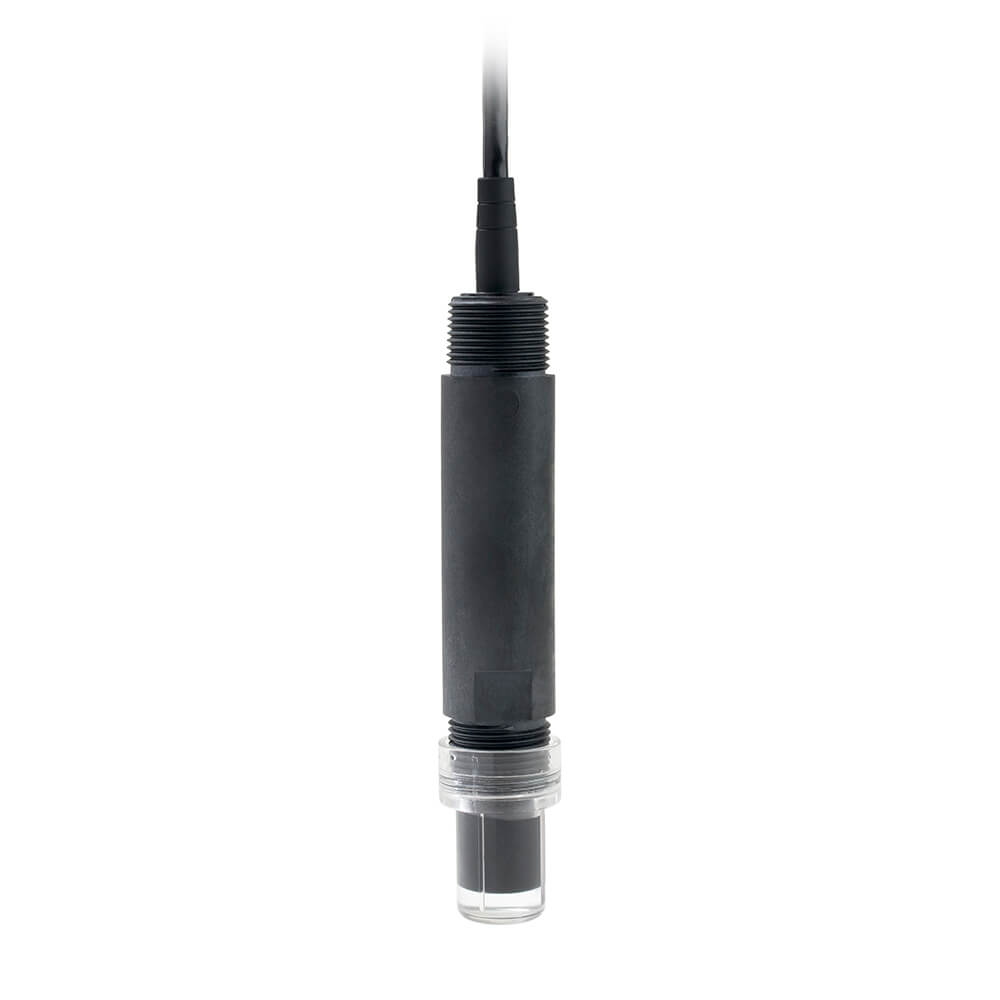

Sensorex S272 pH Sensor with Digital Communication (0-2.000.000 uS/cm)

Measurement Range: 0-14 pH (NA+ ion error >12.3pH)

Temperature Range: 0-100⁰ C

Pressure Range: 0 – 100 PSIG

Body Construction: Ryton Polyphenylene Sulfide (PPS)

Response Time: 95% in 1 second

Isopotential: 7.00 pH

Process Connection: 3/4″ MNPT for submersion or in-line

Input Voltage Options:

12V DC – MODBUS only

24V DC – 4-20mA & MODBUS

Connector: BNC or Tinned Leads

Cable Length: 10 feet (3 meters) or 20 feet (6 meters)
