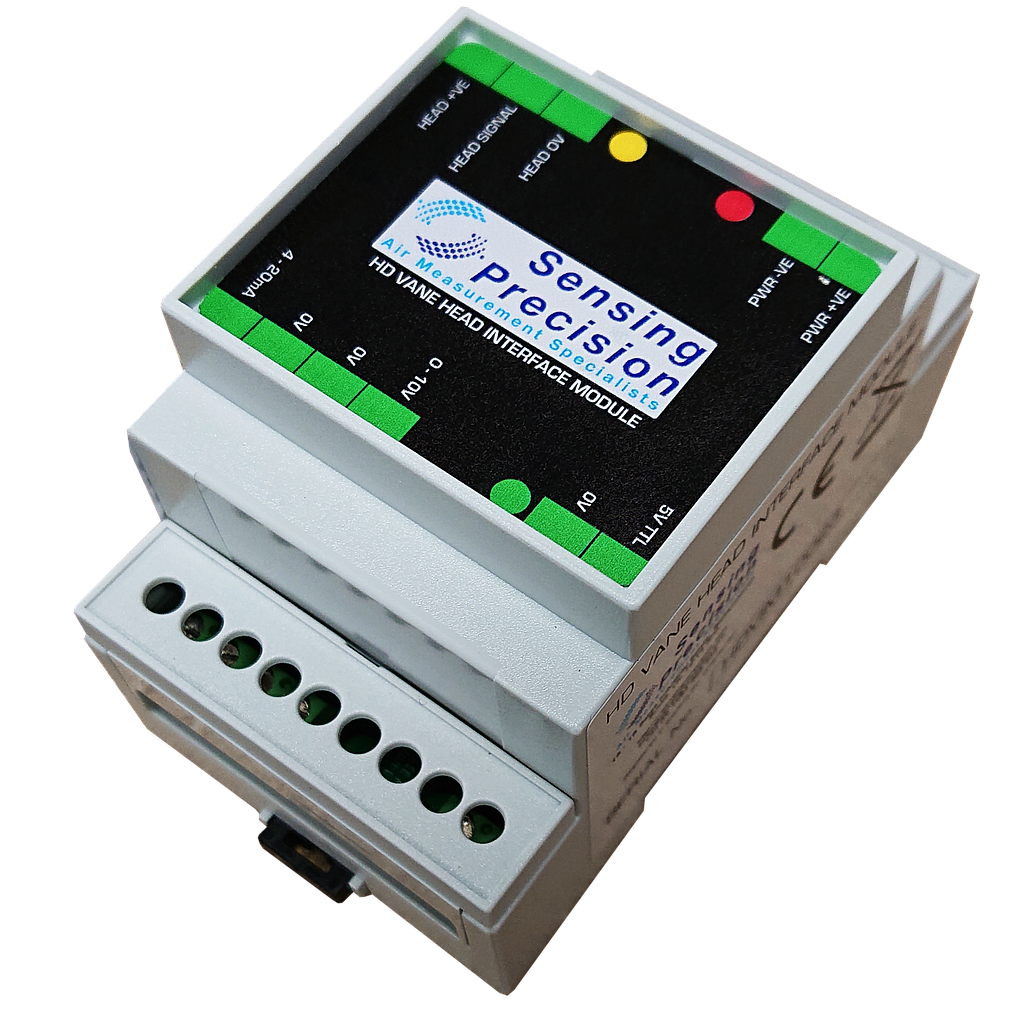

Sensing Precision Single Channel Vane Interface Module

Specification:

– Velocity Range: 0.5 – 30 m/s

– Uncertainty of Measurement: ±1% of reading +1 digit* @ 25°C

– Operating Temperature: -20°C – 100°C

– Storage Temperature: -20°C – 50°C

– Weight: 350g

– Dimensions: 145(h) x 42(d) x 42(w)

– Power Supply: 5 – 15 Vdc

– Output Signal: Signal is conveyed as a DC offset on carrier waveform, simply decoded to a square wave proportional to velocity.

– Nominal Values: 11.7 Hz @ 0.5m/s & 435Hz @ 15m/s

– Freq. Velocity Characteristic: Linear

– Mounting Thread Size: M10

Key Features:

– Single 24V DC or 24V AC supply per module & Vane Head

– 3 proportional outputs

– 4-20mA, 0-10V, & 0-5V TTL frequency (Hz)

– Calibrated to your velocity range (max velocity of 35m/s)

– Simple plug & go setup

– DIN rail compatible enclosure
