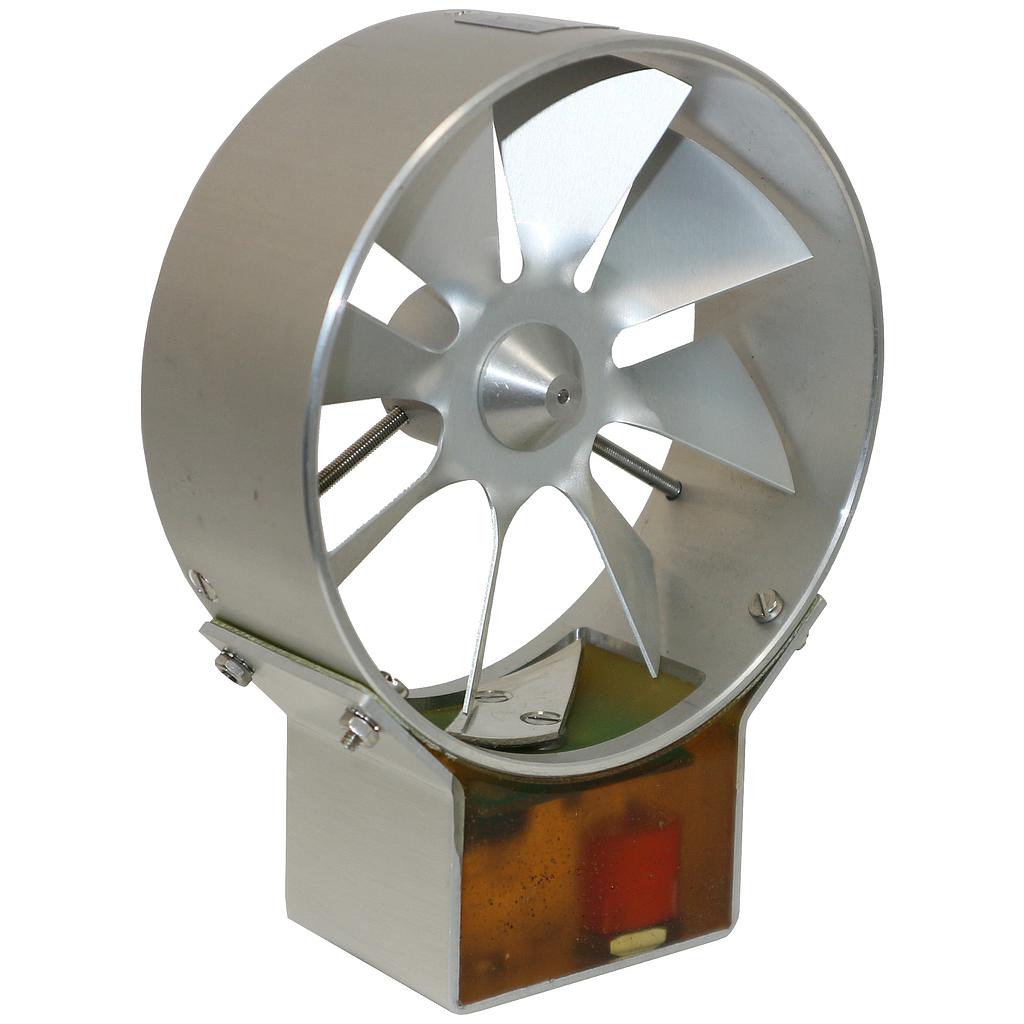

Sensing Precision HD Vane Head Anemometer

Specification:

–Velocity Range: 0.5 – 30 m/s

–Uncertainty of Measurement: ±1% of reading +1 digit* @ 25°C

–Operating Temperature: -20°C – 100°C

–Storage Temperature: -20°C – 50°C

–Weight: 350g

–Dimensions: 145(h) x 42(d) x 42(w)

–Power Supply: 5 – 15 Vdc

–Output Signal: Signal is conveyed as a DC offset on carrier waveform, simply decoded to a square wave proportional to velocity.

–Nominal Values: 11.7 Hz @ 0.5m/s & 435Hz @ 15m/s

–Freq. Velocity Characteristic: Linear

–Mounting Thread Size: M10

Key Features:

– 100mm Dia’ Rotating Vane

– Range of 0.5m/s to 30m/s

– Overall Dia’ of Ø106mm & Depth of 42mm

– Linear Hz pulse output proportional to velocity

– Set calibration points to suit requirements

– M10 threaded attachment bush

– Range of input plugs & leads
