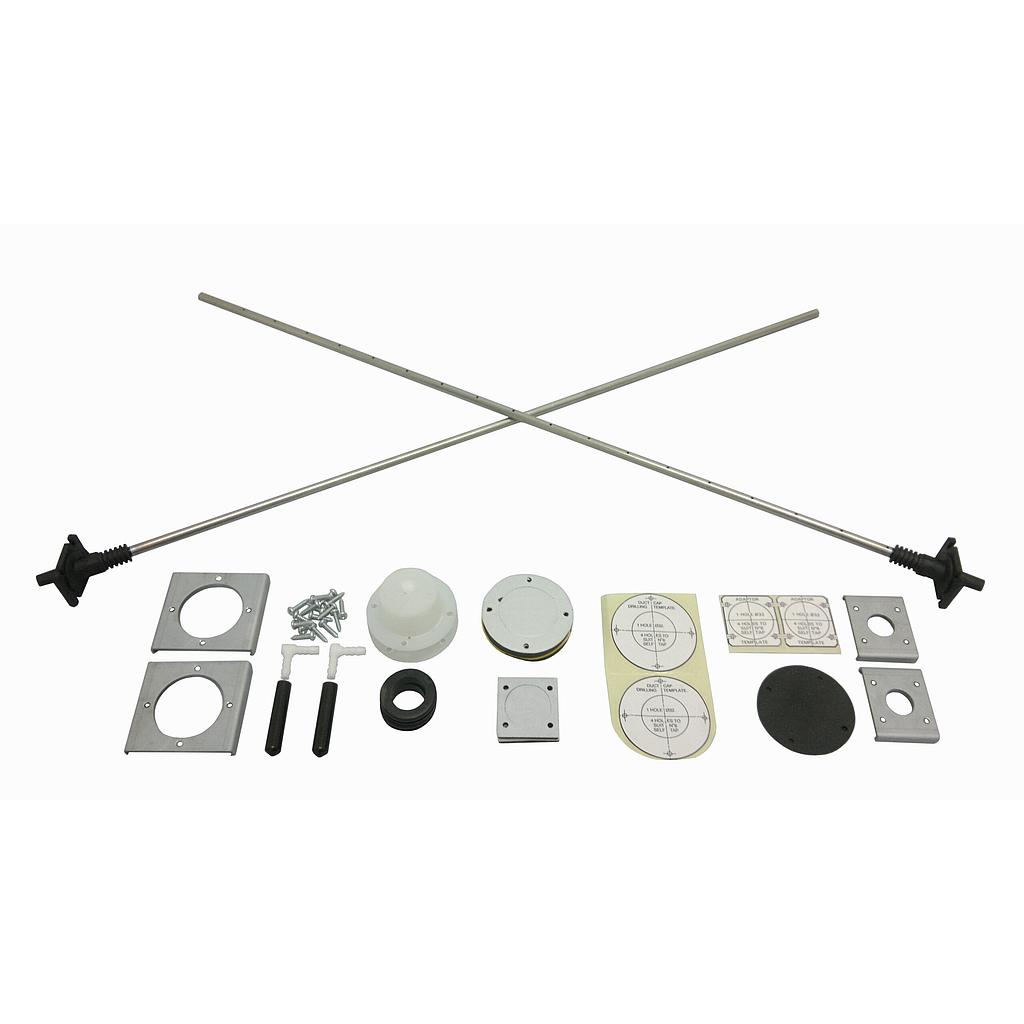

Sensing Precision Grids X – UX-Grids
Standard Sizes Available: ø8mm – up to 715mm diagonal & 680mm Dia.
ø16mm – up to 1534mm diagonal & 1510mm Dia.
Uncertainty of Flow Measurement±5.0% (can be obtained)
Magnification Factor (M): X-Grid – approx. 1.8
UX – Grid – approx. 1
Versions Available: Standard and High Temperature Systems
Temperature Range: Standard up to 80°C – High Temperature up to 850°C (680°C continuous)
Materials: Stainless steel Grade BS3605 321 S18 tube supplied as standard also PVC, Polyurethane, Acetal plastics & Neoprene rubber.
Special Systems: Polypropylene Systems for Harsh Chemical Environments
Extras Available: Bespoke systems manufactured to meet Customer specification
