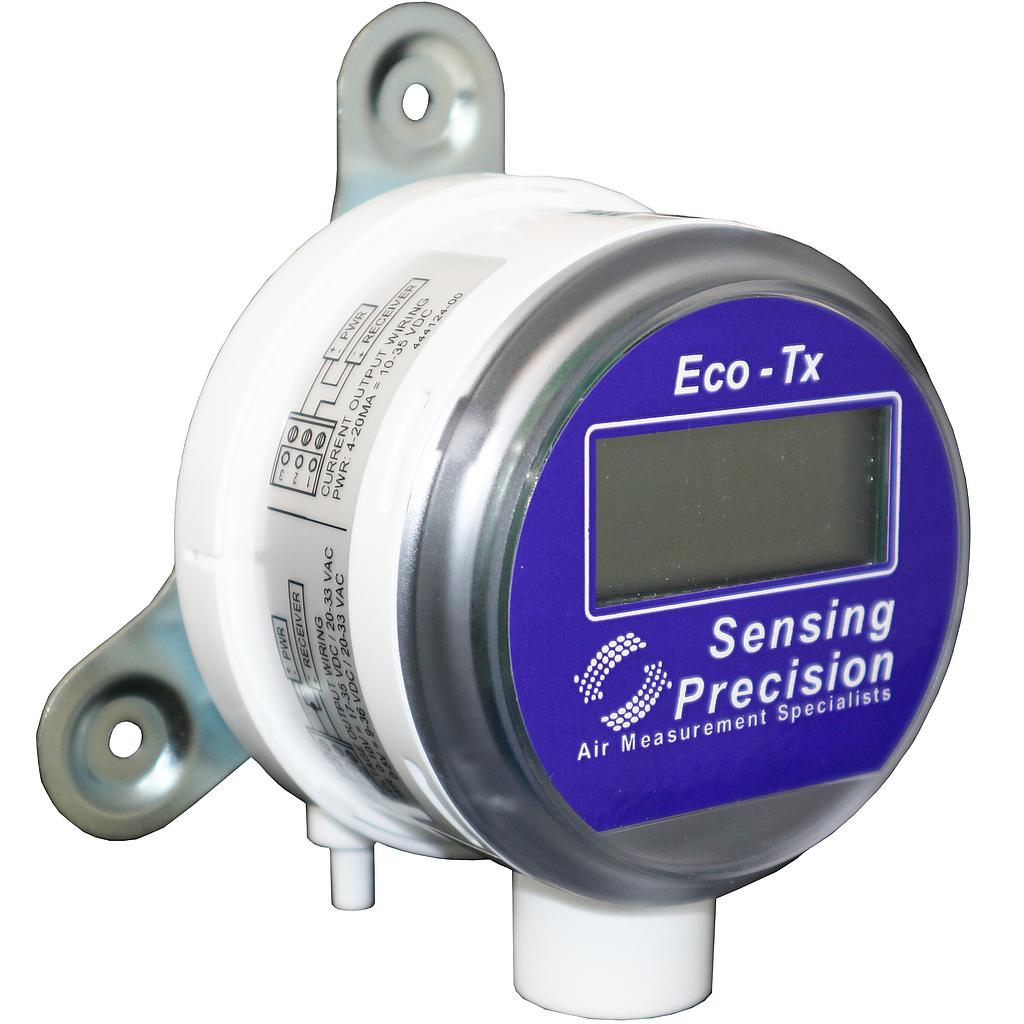

Sensing Precision Differential Eco-Tx Pressure Transmitter

- Accuracy: ±1% of FS (50Pa, 100Pa 500Pa 1250Pa)

±2% of FS (25Pa, 250Pa, ±25Pa, ±250Pa)

- Stability: ±1% / Year FSO

- Pressure Range Tx-M1: 0 to 25, 40, 50 or 125 Pa

- Pressure Range Tx-M2: 0 to 250, 500, 750 or 1250 Pa

- Temperature Limits: -18 to 66 °C (0 to 150°F)

- Pressure Limits: 1 psi MAX (Operation). 10 psi (BURST)

- Output Signals:

4 to 20mA (2-Wire)

0 to 10VDC / 5VDC (3-Wire)

- Response Time:

Averaging 0 to 240 Sec

2.5Hz Sample Rate

- Loop Resistance (Current Output): 0 to 1250Ω Max

- Loop Resistance (Voltage Output): 1KΩ Minimum

- Voltage: 0 to 35VDC orIsolated 21.6 to 33 VAC (3-Wire)

- Current Consumption: 40mA Max

- Weight: 230g

- Enclosure Rating: IP66
