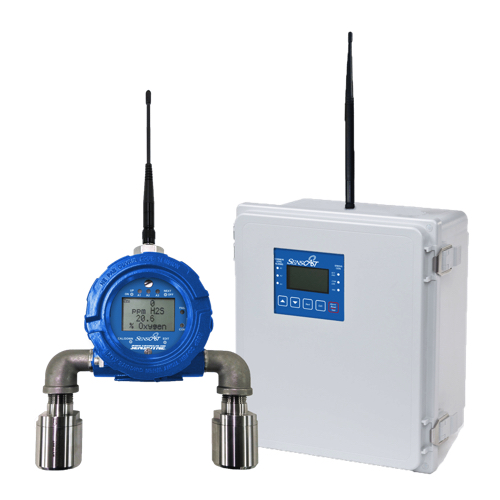

Sensidyne SensCast Wireless Gas Detectors (10 – 30VDC/ 100 – 240VAC)

Sensors

Gas Sensors: Electrochemical

Temperature: See Sensor Data Sheets

Humidity: See Sensor Data Sheets

Controls

Magnetic Keypad: ACK, << (Go Back), ▲, ▼

Security: Password Protected Configuration Menu

Displays

LEDs: Four (4) Red, corresponding to magnetic keypad, and Alarm Relays when equipped.

Graphic LCD: 128 by 64 pixel screen

SensCast Detector

Approval Rating: Class I Div 2, Grps A, B, C, D

Temperature: -40°C to 60°C

Power: 3.6 V 19AH Lithium D-cell battery

Memory: Non-volatile

SensCast Receive

Approval Rating: Class I Div 2, Grps A, B, C, D

Temperature: -25°C to 60°C

Humidity: 0-90% RH, non-condensing

Power: 10 – 30VDC or 100 – 240VAC, 8mA max 40W at 240VAC, 208mA max 5W at 24VDC

Relays: 8 standard Form C dry contacts 5A 28VDC and 250VAC resistive loads

SensCast Relayer

Approval Rating: Class I Div 2, Grps A, B, C, D (Enclosure)

Power: 10 – 30VDC @ 3W

Memory: Non-volatile

SensCast Bridge Repeater

Approval Rating: Class I Div 2, Grps A, B, C, D (Enclosure)

Temperature: -40°C to 60°C

Power: 10 – 30VDC @ 10W max

Memory: Non-volatile

WiFi 900MHz Transmission

2mA during “sleep” mode

40mA receiving

Up to 1A transmit at 1W (transmit may be set from 10mW, 100mW, 400mW to 1W)

30dBm at 1W transmit

-100 dBm receive

902 – 928MHz hopping frequencies

WiFi 2.5GHz Transmission

2mA during “sleep” mode

170mA at 125mW transmit (fixed)

21dBm at 125mW transmit

-95 dBm receive

2400 – 2483.5MHz hopping frequencies
