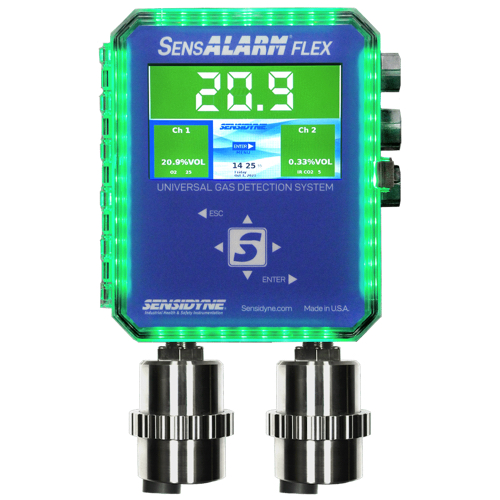

Sensidyne SensAlarm FLEX All-In-One Gas Detection (100-240 VAC)

SENSORS:

Gas – All Sensidyne Plus Series sensors

ToD – Test-On-Demand available for specific toxic sensors

ELECTRICAL:

Design – Microprocessor based with nonvolatile memory. Automatically resumes operation after power failure

Power – 100-240 VAC, 50/60 Hz or 20-30 VDC

Battery – Optional battery back-up available

Outputs – 4-20 mA into 600 ohms; Standard Modbus RS-485 RTU or Ethernet TCP

Light Stack – (NEMA 4X) optional up to 4 strobes with red, amber, blue, and green strobes

Horn – 95 dB piezo horn

Relays – 4 standard SPDT configurable relays. Optional 4 more SPDT configurable relays. Contact ratings: 6 amps at 120 VAC or 28 VDC resistive, 3 amps at 240 VAC resistive.

ENCLOSURE:

Material – Polycarbonate

Environment – NEMA 4X design

Type – Wall mount with tabs

Overall Size – W x H x D: 8 x 10 x 6 in. / 20.3 x 25.4 x 15.24 cm

Weight Range – 12.25-24.17 lbs / 4.57-9.02 kg (with 1-2 sensor heads)

Conduit – 3/4 inch NPT connector supplied (side).

Temp: -4° to 122°F / -20° to 50°C

Humidity – 0-90 %RH, non-condensing.

Location – Indoor or Outdoor

Sensor Head – Enclosure and retaining ring are black anodized aluminum, PVC, or 316 stainless steel; splash guard and most other accessories are made of PVC.

DISPLAYS & CONTROLS:

Display – 7 in. / 17.8 cm color LCD

Security – Password Protected Configuration Menu

Auto Config – System automatically senses the presence of optional modules and features

Reset/silence – External push button switch for acknowledge (Alarm sequence 3A)

Annunciators – Audible (+95dB) & Visual single strobe with optional second strobe
