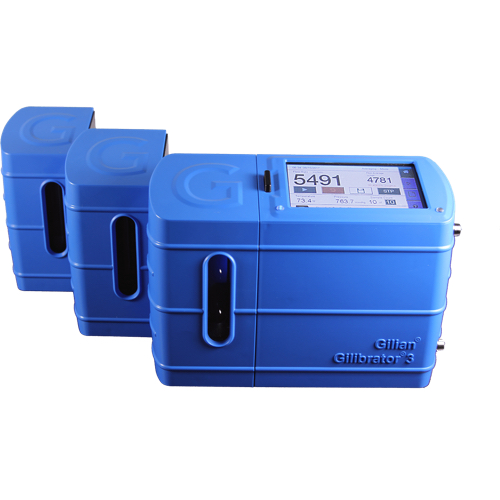

Sensidyne Gilibrator 3 Gilian Air Sampling (5-450cc/min, 50-5000cc/min, 1-30LPM)

Flow Ranges: Low: 5-450 cc/min, Standard: 50-5000 cc/min, High: 1-30 LPM

Volumetric Accuracy: ±1% of reading

Temp. & Pressure Sensor: YES, in flow stream

Time per Measurement: 1-15 seconds

Sampling Mode: Instantaneous, Averaging

Averaging Function: Selectable; 3 to 20 Measurements

Gas Compatibility: Non-corrosive, non-condensing

Flow Modes: Pressure or Suction

AC Adapter / Charger: 12 VDC

Battery System: Lithium (LiFePO4) (see Certifications below)

Battery Run Time: 3 hours max flow, 8 hours continuous use (min brightness)

Battery Charge Time:

12 VDC Adapter: 3 hr

USB: 7 hrs (unit off)

Operating Temperature: 10-40°C (50-104°F)

Storage Temperature: 0-70°C (32-158°F)

Operating Humidity: 0-85% RH, non-condensing

Storage Humidity: 0-100% RH, non-condensing

Display: Color Graphic LCD, HMI Touch Screen

Data Port: RS-232 (for Pump interface), USB (for data)

Transportable Storage: SD Card

Protective Hard Shell Case: Carrying case for 1 to 3 Cells

Dimensions (HxWxD): 6.6” x 9.2” x 3.2” (168 x 234 x 81 mm)

Weight:

Base: 2.8 lbs / 1,270 g

Low Flow Cell: 0.8 lbs / 363 g

Std Flow Cell: 0.85 lbs / 385 g

High Flow Cell: 1 lb / 454 g
