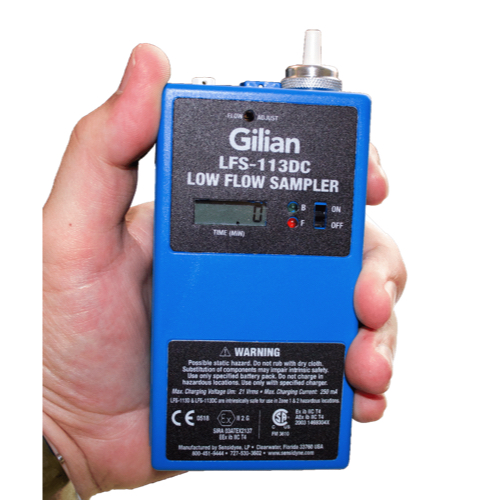

Sensidyne Gilian LFS-113 Low Flow Personal Air Sampling Pump (1 – 350 cc/min)

PERFORMANCE

Flow Range: 1-350 cc/min

Low Flow Range Constant Flow: 20-200 cc/min, to 25” H2O

Constant Pressure (Multi Flow): 1-350 cc/min, to 18±3” H2O

Constant Flow Control: Better than ± 5% of set flow (after calibration)

Run Time: 8 hour minimum

ENVIRONMENTAL

Temperature Ranges:

- Operating Temperature: -20°C to 45°C (-4°F to 113°F)

- Storage Temperature: -40°C to 45°C (-40°F to 113°F)

- Charging Temperature: -40°C to 45°C (-40°F to 113°F)

Humidity Ranges:

- Operating: 0-85 %RH, non-condensing

- Storage: 0-100 %RH, non-condensing

GENERAL

Features: Dual filtration system, sorbent tube end breaker, belt clip

Controls: Power Switch, Flow Control Screw

Indicators: Flow Fault, Battery Check

Icons (LCD): Elapsed Time (DC model only)

Dimensions: 35W x 11.76H x 3.51D cm / 2.50W x 4.63H x 1.38D inches

Weight: 340 g (12.0 oz.)

ELECTRICAL

Battery Pack: Rechargeable NiMH

Note: Battery packs are not interchangeable between models.

Interface Connectors: Charging Jack

Charging Time: 14-18 hours

Datasheet
