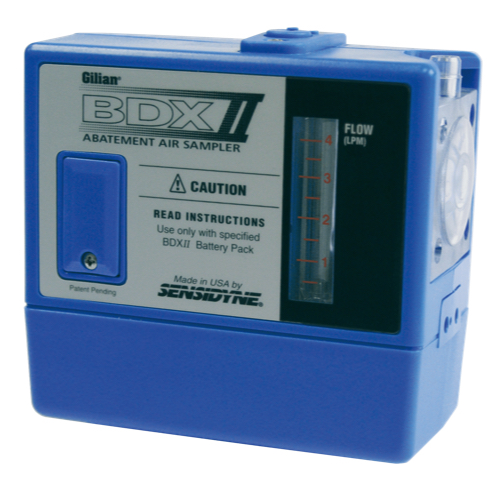

Sensidyne Gilian BDX-II Personal Air Sampling Pump (500 – 3000 cc/min)

PERFORMANCE

Flow Range: 500 – 3000 cc/min

Run Time: 10 hours at 2 LPM

ENVIRONMENTAL

Temperature Ranges:

Operating Temperature: -20°C to 45°C (-4°F to 113°F)

Storage Temperature: -40°C to 45°C (-40°F to 113°F)

Charging Temperature: 5°C to 45°C (41°F to 113°F)

Humidity Ranges:

Operating: 5-85 %RH, non-condensing

Storage: 5-98 %RH, non-condensing

GENERAL

Controls: Power Switch – Flow Control

Additional Features: See-through external filter housing, with filter monitoring lens; built-in belt clip

Dimensions: 3.6” (W) x 3.9” (H) x 2.0” (D)

Weight: 21 oz (595 g)

ELECTRICAL

Battery Pack: 4.8 volt, 1.8 amp hour, sealed.

Battery Type: Rechargeable nickel metal hydride

Battery Charge Time: 14 – 16 hours
