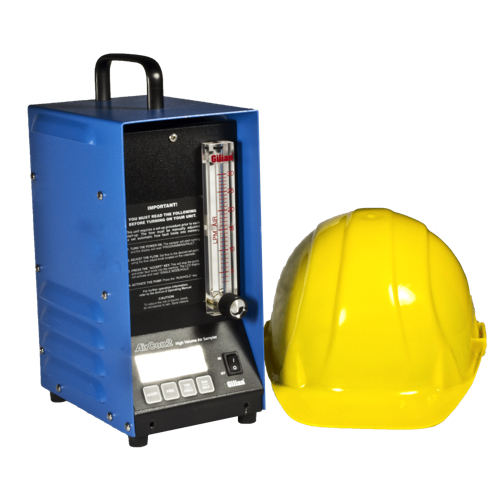

Sensidyne Gilian AirCon-2 Area Air Sampling Pump (2 – 30 LPM)

PERFORMANCE:

Flow Range: 2-30 LPM

Constant Flow: 2-30 LPM @ pressures up to 7 psi

Run Time: 8 hour minimum

ENVIRONMENTAL:

Temperature Ranges:

- Operating: -4°F to 113°F (-20°C to 45°C)

- Storage: -40°F to 113°F (-40°C to 45°C)

Humidity Range: 0-95 %RH, non-condensing

GENERAL:

Display: Electronic Pressure Display, Full-Function Timing Program, Instant-Fault Function, Programmable Memory (up to 3 custom programs)

Keypad: ACCEPT, PROG, TIME/PRESS, RUN/HOLD

Controls: Flow Adjust

Indicators: LCD Display, External Rotameter, Instant Fault, Low Battery

Dimensions: 4.3W x 0.3H x 7.5D inches (10.8W x 26.0H x 19.1D cm)

Weight:

- Main Unit: 12 lbs (5.4 kg)

- 4-Hour Battery Pack: 11.5 lbs (5.2 kg)

- Power Module: 2 lbs (0.9 kg)

ELECTRICAL:

Main Unit Input: 12 VDC @ 3.4 A

Power Module Input: 115-230 VAC @ 800/600 mA, 50-63 Hz

Power Module Output: 14 VDC @ 4.6 A (51 watts)

Battery Pack Output: 12 VDC, 13 AH

Fuses: 250 VAC, 3 amp, fast acting; 250 VAC, 1.6 amp, fast acting

Charging Time: 14 hours (operational), 8 hours (non-operational)
