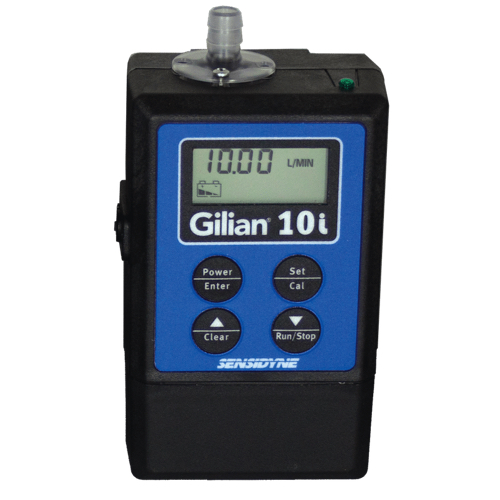

Sensidyne Gilian 10i Air Sampling Pump (4 – 10 LPM)

PERFORMANCE:

Flow Range: 4.00 – 10.00 LPM

Constant Flow Control: ± 5% of set flow at 4-10 LPM

Flow Compensation (Up to 5-hours at):

- 4 LPM up to 45” H2O back pressure

- 5 LPM up to 40” H2O back pressure

- 6 LPM up to 34” H2O back pressure

- 7 LPM up to 28” H2O back pressure

- 8 LPM up to 22” H2O back pressure

- 9 LPM up to 18” H2O back pressure

- 10 LPM up to 12” H2O back pressure

Run Time (8-hours minimum at):

- 4 LPM up to 24” H2O back pressure

- 5 LPM up to 20” H2O back pressure

- 6 LPM up to 18” H2O back pressure

- 7 LPM up to 15” H2O back pressure

- 8 LPM up to 12” H2O back pressure

- 9 LPM up to 11” H2O back pressure

- 10 LPM up to 8” H2O back pressure

Dimensions:

- 3.2W x 5.4H x 2.3D inches

- 8.2W x 13.7H x 5.8D cm

Weight: 23 oz. (654 g)

ELECTRICAL:

Battery Pack: Removable, Sealed, Rechargeable, Nickel-Metal-Hydride (6 cells)

Battery Level Indicator: Icon displays Full, Mid, & Low levels

Interface Connectors: Charging Jack

Charging Time: Under 4 hours
