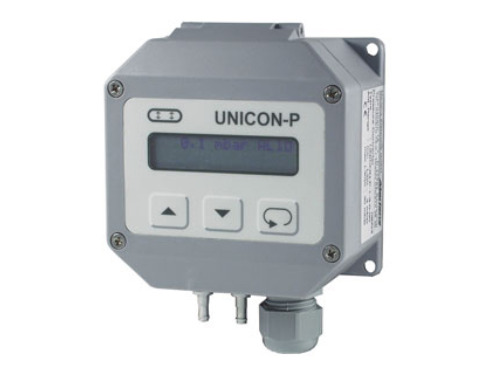

Senseca UNICON-P Pressure converter (0..50 °C / -15..+65 °C)

Supply voltage : 7.5..30 VDC, 2-wire 4..20 mA,

16..30 VDC, 3-wire 0..10 VDC

Operating temp. : 0..50 °C or -15..+65 °C condensate-stability device

Storage temperature : -20..+80°C

CE-conformity : EN 61326-1:2013

Input

Process connection

Standard device : 2 pressure tubes for 4 mm

hose (standard) or 4 and 6 mm Schott glands available

Condensate-stability

device : 1 Schott gland, 4 or 6 mm

Process medium : see table Measurement / Process media

Measuring principle : Piezoelectric

Conversion rate : 2 / s
