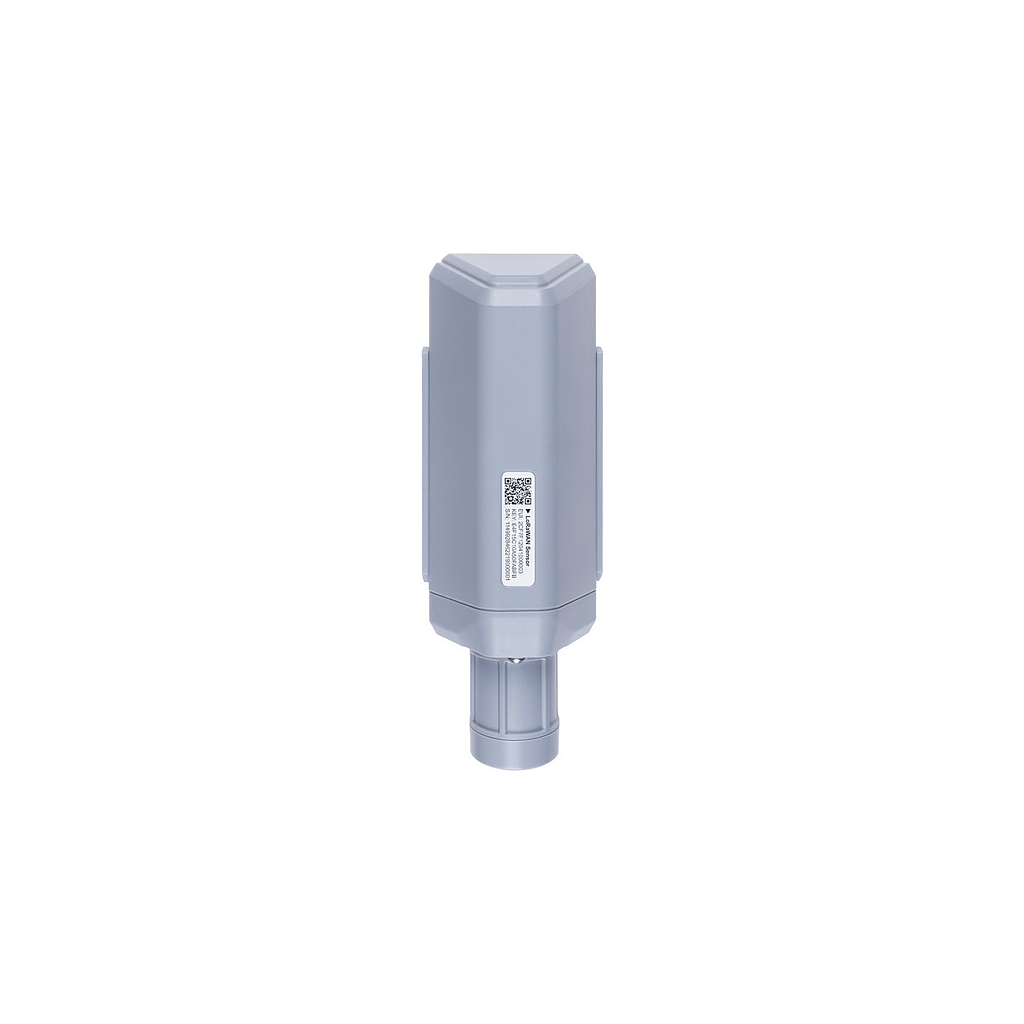

SenseCAP S2101 Air Temperature and Humidity Sensor (0 ~ 100 %RH, -40 ~ +85 °C)

Air Temperature:

Range: -40 to +85 °C

Accuracy: ±0.2 °C

Resolution: 0.01 °C

Long-term Drift: <0.03 °C/year

Air Humidity:

Range: 0 to 100 %RH

Accuracy: ±1.8 %RH

Resolution: 0.01 %RH

Long-term Drift: <0.25 %RH/year

General Parameters:

Product Model: S2101

Microcontroller: Wio-E5

Support Protocol: LoRaWAN v1.0.3 Class A

Built-in Bluetooth: App tool to change parameters

LoRaWAN Channel Plan: IN865 / EU868 / US915 / AU915 / AS923 / KR920 / RU864

Max Transmitted Power: 19 dBm

Sensitivity: -136 dBm @ SF12 BW = 125 KHz

Communication Distance: 2 to 10 km (depending on gateway antenna and environments)

IP Rating: IP66

Operating Temperature: -40 to +85 °C

Operating Humidity: 0 to 100 %RH (non-condensing)

Device Weight: 280 g

Certification: CE / FCC / RoHS

Battery (Contained in equipment):

Battery Life: Up to 10 years

Battery Capacity: 19 Ah (non-rechargeable)

Battery Type: Standard D-size SOCl2 Battery
