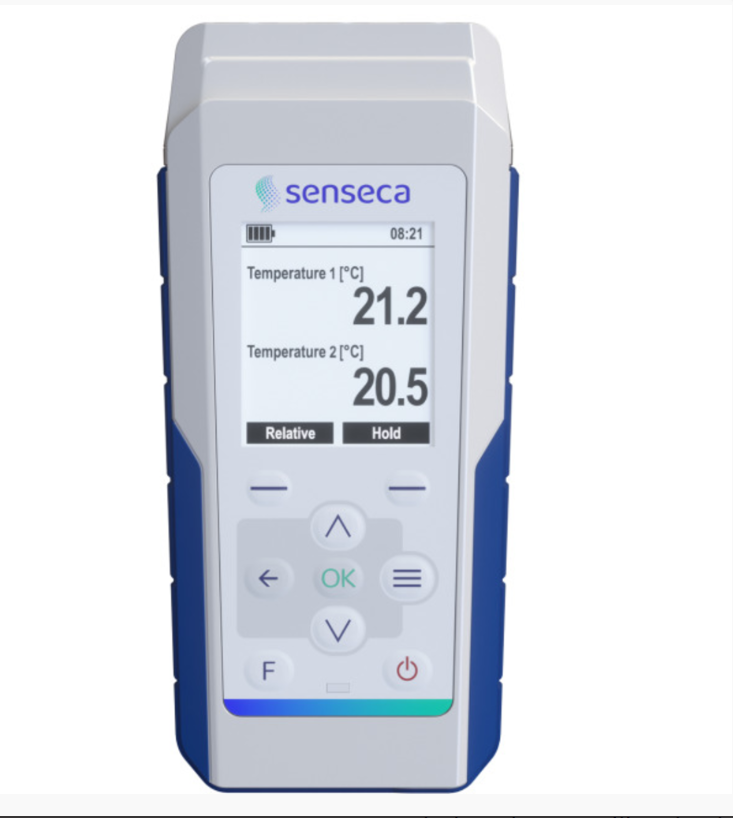

Senseca PRO 131.2 Precision second thermometer (2CH, Dataloger)

Version:Standard

Accuracy:

±(0.2 °C + 0.2% of measured value) ± 1 digit (J, K, N, T, E)

±(0.5 °C + 0.4% of measured value) ± 1 digit (S, B, R)

Auto power off:

Yes, user configurable

Automatically disabled if external power is connected

Battery autonomy:> 150 h typ. continuous operation

Channels:2 / Miniature female flat-pin TC connectors

Clock:User settable RTC ; Max. drift 1 min/month @ 25 °C

Cold junction accuracy:±0.3 °C

Dimensions:170 x 78 x 38 mm

Housing material:ABS, TPE (side protection), Polyester (front panel)

Logging interval:1, 5, 10, 15, 30 s / 1, 2, 5, 10, 15, 20, 30 min / 1 hour (only PRO 135)

Logging type:Automatic with manual or scheduled start/stop (only PRO 135)

Long-term drift:±0.1 °C/year

Measurement rate:4 meas/s

Operating conditions:-5…50 °C / 0…85 %RH non-condensing

PC connection:USB C / Mass Storage Device (only PRO 135)

Power consumption:20 mA typ.

Power supply:4 x AA alkaline batteries

External: 5 Vdc via USB C (power adapter or PC USB port)

Protection degree:IP 67 (except probe connection)/ IK 04

Storage capacity:

Up to 1 million data sets, file system based

Each data set includes date/time stamp and measurement

Data are stored in CVS files (only PRO 135)

Storage temperature:-25…65 °C (without batteries)

User interface:Multilingual (de, en, it, fr, es)

Weight:320 g approx.

Display:140 x 160 dot matrix backlit LCD / Visible area 42 x 50 mm

Multiple choice of measurement screens:

Large digit single value

Multi-row

Statistical info (Min/Avg/Max)

Chart view

Measuring rangeK:

-220.0…+1372.0 °C / -364.0…+2501.6 °F

J: -200.0…+1100.0 °C / -328.0…+2012.0 °F

N: -200.0…+1300.0 °C / -328.0…+2372.0 °F

S: -50.0…+1750.0 °C / -58.0…+3182.0 °F

T: -200.0…+400.0 °C / -328.0…+752.0 °F

E: -60.0…+850.0 °C / -76.0…+1562.0

Resolution:0.1 °C / 0.1 °F or 1 °C / 1 °F depending on TC type (see measuring ranges)

Alarm function:CH1, CH2, DIF, sound & light

Current supply:4 batteries (Mignon AA/LR6) or via USB socket

Measuring input:2x thermocouples type J, K, N, S, T, B, E, R

Output:USB jack type C

Probe connections:2 sockets for 2-pin standard flat plugs

Protection type:IP67 (except sensor input)

Scope of delivery:incl batteries, short manual
