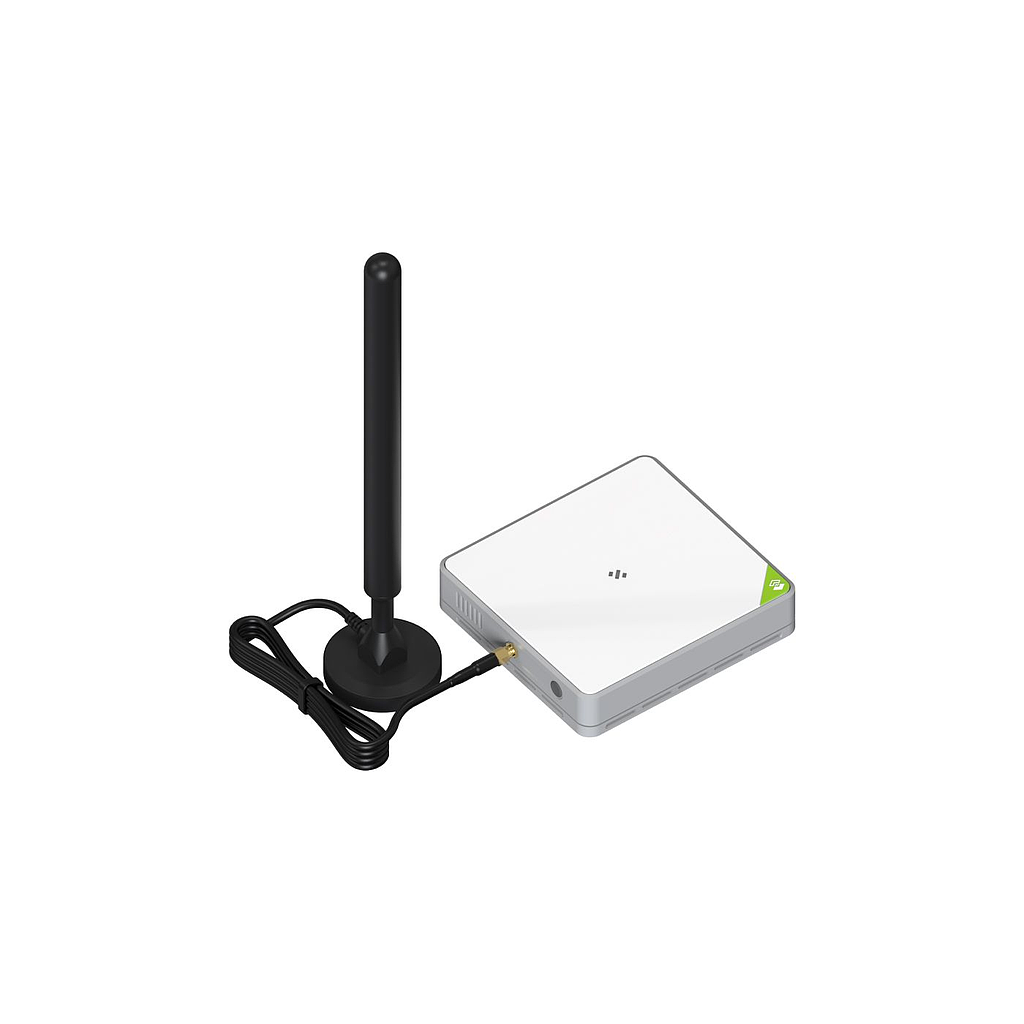

SenseCAP AS923 Multi-Platform LoRaWAN Indoor Gateway

Processor: MT7628 (MIPS24KEc @ 580MHz)

RAM: DDR2 128MB

Flash: 32MB

Long Range Gateway Chip: SX1302

Channel: 8

LoRaWAN® Protocol: V1.0.3 Class A / Class B / Class C

Frequency Plan: IN865 / EU868 / RU864 / US915 / AU915 / KR920 / AS923

Note: The listed frequency plans refer to the bands supported by the built-in LoRa chip (SX1302), not all bands available on a single gateway. Please refer to the LoRaWAN® Frequency below for model selection.

Long Range Sensitivity: -125 dBm @125KHz / SF7; -139 dBm @125KHz / SF12

Long Range TX Power: Up to 26 dBm

Antenna: Long Range: 3dBi External Antenna with Base; Wi-Fi: Internal Antenna

Antenna Impedance: 50 Ohm

Wi-Fi: Support 2.4 GHz 802.11 b/g/n

Ethernet: 1x RJ45 (10M / 100M), PoE PD support

Cellular (Optional): Another version is optional, coming soon

Input Voltage: DC 12V - 2A; PoE (IEEE 802.3af), 40V–57V DC

Interfaces: Ethernet RJ45 ×1; RP-SMA Female Antenna Connector ×1; Micro SD Card Slot (Future use) ×1; USB Type-C (Console) ×1

Management Software: Web

Dimension: 143.6 × 135 × 34 mm (connector not included); 150.6 × 135 × 34 mm (connector included)

Package: 340 × 230 × 65 mm

Operating Temperature: -20°C to 55°C

Relative Humidity: 0% – 85% (non-condensing)
