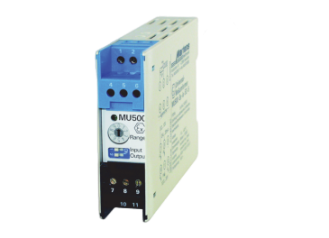

Senseca MU500Ex-51-5-00 Universal Transmitter (Pt100, 13 measuring ranges, 10..30 V AC/DC)

Power supply

Supply voltage : 10..30 V AC/DC

Frequency AC : 40..400 Hz

Power consumption : < 3.3 VA

Operating temperature : -10..+60 °C

CE-conformity : ATEX-Richtlinie 2014/34/EU

Standards : EN 60079-0:2006, EN 60079-11:2007,EN 61241-0:2006, EN 61241-11:2006

EMC-directive /standard : 2014/30/EU / EN 61326-1:2013

Explosion protection

Approval : TÜV 03 ATEX 2283,

Marking : II (1) G [Ex ia Ga] IIC or II (1) D [Ex ia Da] IIIC

The intrinsically safe circuit is galvanically separated from the nonintrinsically safe circuits up to a peak crest value of the voltage of 375 V.

Measuring input

Sensor current : approx 1 mA,

Line resistance : max. 100 Ω, automatic compensation with 3-wire connection

Zero adjust :approx. ± 8 Ω, ( ≙ 20 °C)

End value : approx. +/-20 % adjustable

Sensor error : output rises to max. output (voltage output >12V DC; current output > 25 mA)
