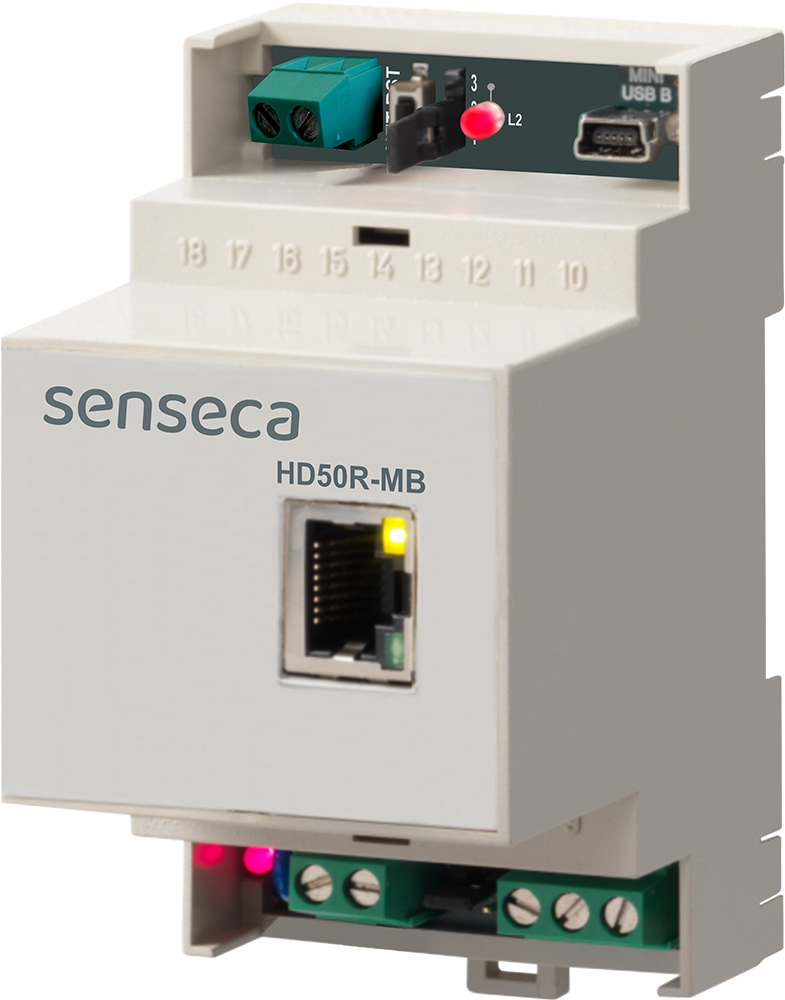

Senseca HD50R-MB Data Logger DIN Rail with Ethernet Connectivity (7…30 Vdc)

Measuring interval: 1, 2, 5, 10, 15, 30 s / 1, 2, 5, 10, 15, 30, 60 min (the minimum interval may be greater than 1 s if several devices are acquired)

Logging interval: 1, 2, 5, 10, 15, 30 s / 1, 2, 5, 10, 15, 30, 60 min (the minimum interval may be greater than 1 s if several devices are acquired)

Internal memory: Circular management or stop logging if memory is full.

Interfaces:

ETHERNET (RJ45 connector) with proprietary

TCP/IP or Modbus TCP/IP protocol

USB (mini-USB connector)

Master RS485 Modbus-RTU (for acquiring the sensors)

Alarm: Acoustic by means of the internal buzzer and sending of e-mails

Power supply: External 7…30 Vdc

Consumption: 40 mA @ 24 Vdc

LED indicators: Power supply and LAN connection

Operating conditions: -10…+60 °C / 0…85 %RH non condensing

Housing: Plastic material

Weight: 200 g approx.

Installation: 35 mm DIN rail
