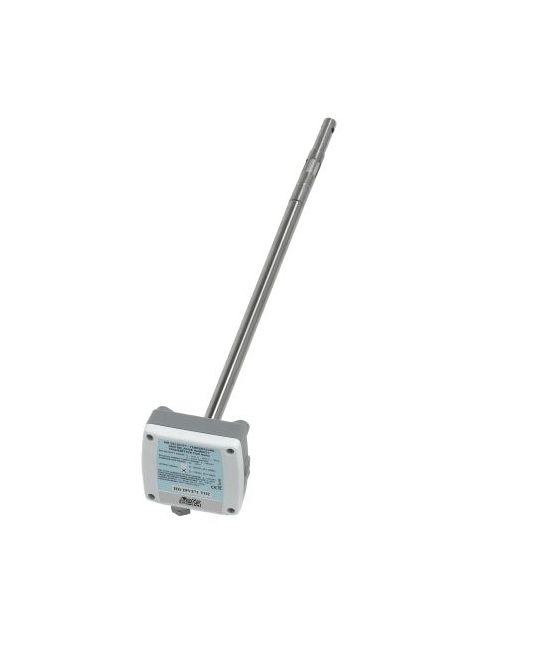

Senseca HD29371TO3 Air Speed, Temperature and Relative Humidity Transmitter (4-20mA, 0.05 -20m/s, -10~ 60 °C, 0-100% RH, sensor 565mm, cảm biến gắn liền)

Air speed Measuring range (The measuring range can be selected by dip-switch.)

0.05…1m/s

0.1…2m/s

0.20…10m/s

0.20…20m/s

Air speed Accuracy (at 50% RH and 1013 hPa)

range 0…1m/s ±(0.1m/s + 3% of mesurement)

range 0…2m/s ±(0.15m/s + 3% of mesurement)

range 0…10m/s ±(0.5m/s + 3% of mesurement)

range 0…20m/s ±(0.7m/s + 3% of mesurement)

Temperature range: -10~ 60 °C

Temperature accuracy: ± 0.3°C

Relative Humidity Accuracy

±1.5%RH (10...90%RH) ±2 0%RH (in the remaining range) for T= 15...35°C

±(1.5+1.5% of the displayed value) %RH in the re- maining temperature range

Relative Humidity Output Range: 0...100%RH

Output: 4-20mA RL< 500Ω

Power supply 18…40Vdc or 12…24Vac± 10%

Response time:

0.2s (Fast)

2.0s (slow)

Operating temperature electronics probe:

0~ 60 °C

-10 ~ 80 °C

Compensation temperature: 0 ~ 80 °C

Storage temperature: -10 ~ 70 °C

Electronics protection class: IP67

Probe length: 565mm

Sensor working conditions: Clean air, RH< 80%

Case dimension: 80x84x44 ( without probe)
