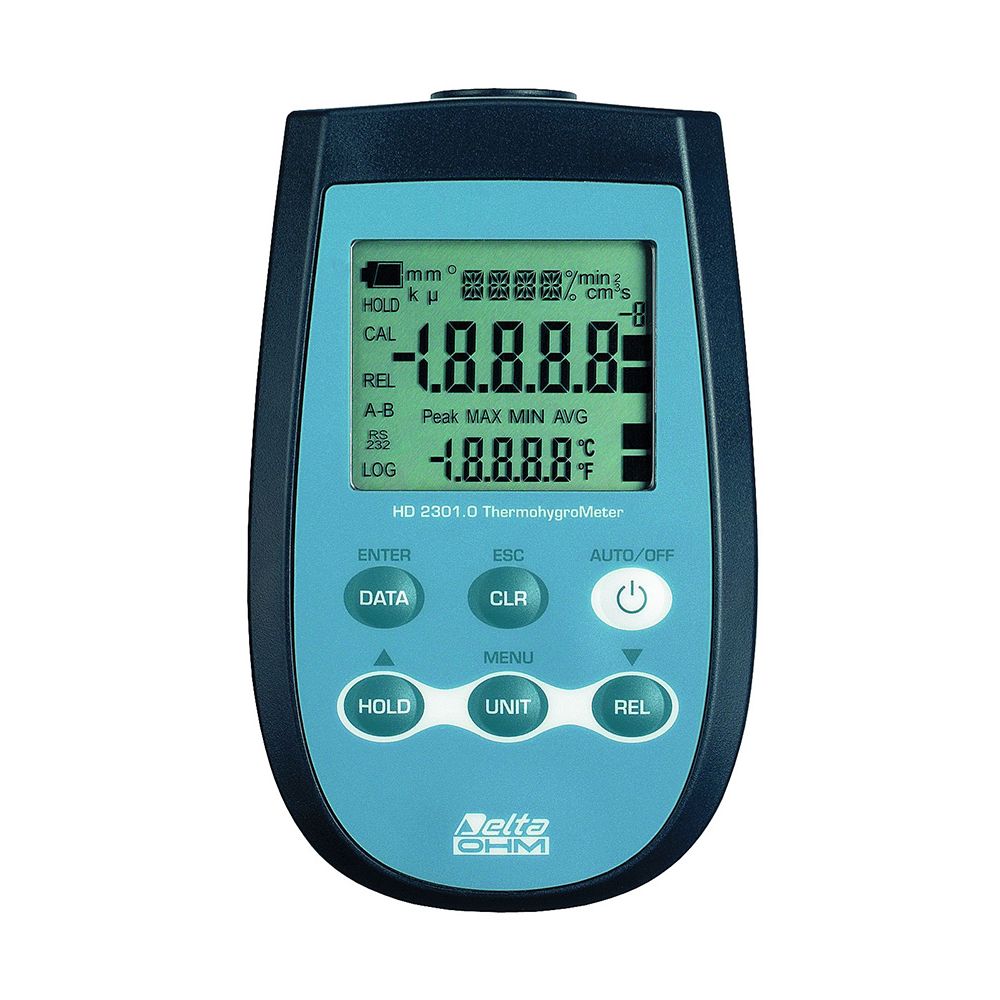

Senseca HD2301.0 Handheld Thermo-Hygrometer (0…100%RH)

Measurement of relative humidity

Measurement range: 0…100%RH

Resolution: 0.1%RH

Accuracy: ±0.1%RH

Drift: after 1 year 0.1%RH/year

Measurement of temperature

Pt100 measurement range: -200…+650 °C

Pt1000 measurement range: -200…+650 °C

Resolution: 0.1°C

Accuracy: ±0.1°C

Drift: after 1 year 0.1°C/year

Measuring unit: °C - °F - %RH - g/m3 - hPa

Power

Batteries: 3 1.5V type AA batteries

Autonomy: 200 hours with 1800 mAh alkaline batteries

Power: absorbed with instrument off < 20μA

Connections

Input: module for the probes 8-pole male DIN45326 connector

Operating conditions

Operating temperature: -5…50 °C

Storage temperature: -25…65°C

Working relative humidity: 0…90%RH without condensation

Protection: degree IP67

General characteristics

Dimensions: (Length x Width x Height) 140x88x38mm

Weight: 160g (complete with batteries)

Materials: ABS

Display: 2 rows 4½ digits plus symbols

Visible area: 52x42mm
