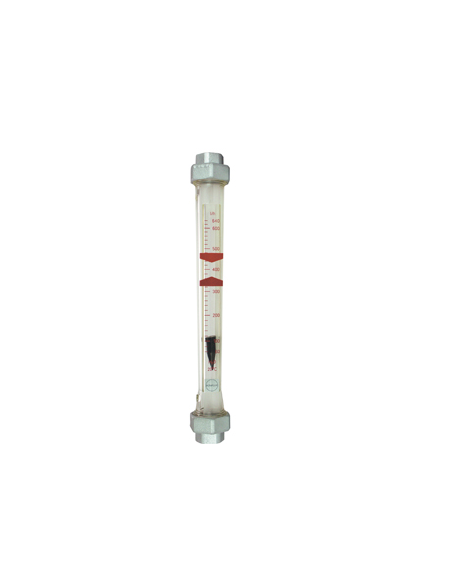

Senseca GKL-032GPW2500KM Flow Indicator (200 – 2500 l/h, with magnet, PSU tube, Malleable cast iron connection)

Medium water / float stainless steel

Metering tube: PSU

Switch: optional reed switch

Nominal width: DN 32

Process connection: malleable cast iron, female Rp 1 1/4''

Metering range: 200 – 2500 l/h

Qmax. : up to 6400 l/min

Tolerance: ±3 % of the full scale value

Max. process pressure: 15 bar up to 25°C

Medium temperature: -20..+60 °C optional 5..100 °C metering tube PSU

Ambient temperature: -20..+60 °C

Media: water

Electrical data: see "Additional devices for GK / GKL"

Materials medium-contact: PA 6-3-T, Malleable cast iron, FPM float made from PP or s.s.1.4571 ,optionally, measurement tube made from PSU

For details please see Datasheet
