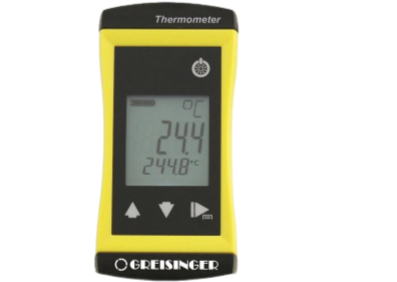

Senseca G1202 Quick response differential thermometer (-65.0 ... 1200.0 °C)

Device alone, without temperature probe

Measuring range: -65.0 ... 1200.0 °C / -85.0 … 2192 °F

Display Channel: 1 & 2 or difference & channel 2

Accuracy (at nominal temperature):

Instrument: ±0.1 % v.MW. ±1 °C

Reference junction: ±0.3 °C

Measuring cycle: Approx. 3 measurements per second

Connections: two DIN Mini thermocouple sockets

Standard functions: Min/Max/Hold ; Auto power-off function

Additional functions:

Zero and slope adjustment

Alarm function with buzzer (Min/Max Alarm channel 1 and 2 or difference)

Ambient conditions: -20 to 50 °C; 0 to 85 % r.h. (non condensing)

Display: 3-line with battery status indicator, Backlight, protected by shatterproof screen, overhead display at the push of a button

Operation: 4 long-life keys

Power supply: 2*AA batteries (included)

Operating time: > 2500 h (without backlight, with backlight: ~1000 h); 4 level battery status indicator, Auto power off function, configurable

Housing: break proof ABS, screw locked battery compartment

Protection class: IP40

Dimensions: 108 * 54 * 28 mm (L*W*H)

Weight: 125 g incl. battery
