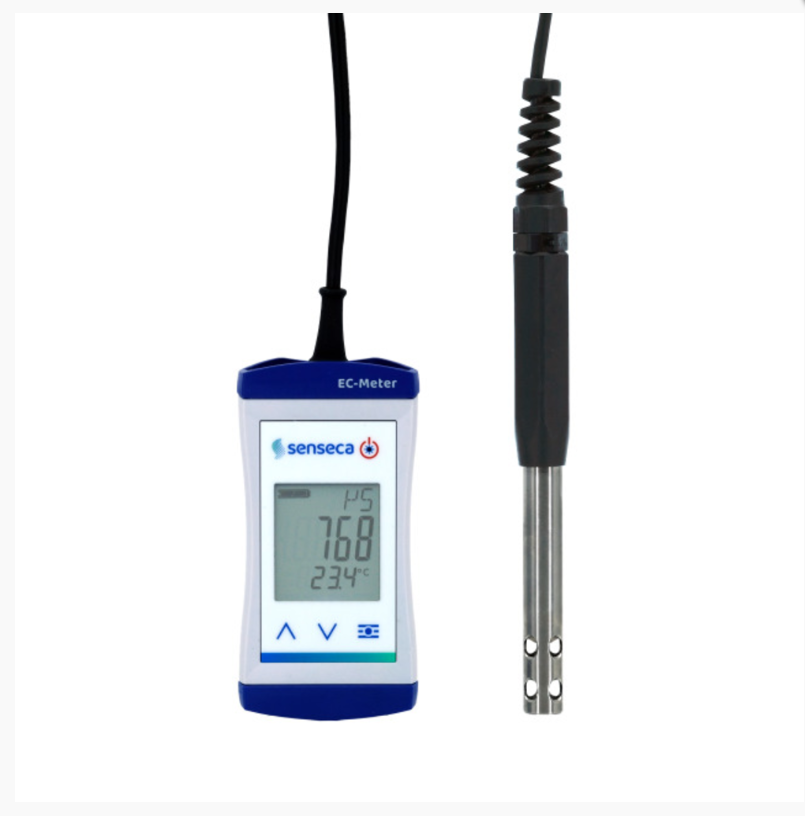

Senseca ECO 521-L01 waterproof compact EC-meter / conductivity-meter (0 ... 5000 µS/cm, 0 ... 2000 mg/l)

Additional functions:automatic temperature compensation

Connections:Permanently connected 2-pole measuring cell with integrated fast temperature sensor, 2-pole Ø 12 mm (Titanium)

Dimensions:108 x 54 x 28 mm

Display:3-line with battery status indicator, Backlight, protected by shatterproof screen, overhead display at the push of a button

Housing material:Break-proof ABS housing

Measuring range

Conductivity: 0...5000 μS/cm

EC: 0...5.000 EC (equals mS/cm)

CF: 50.00 CF (equals 10 x EC)

TDS: 00...2000 mg/l (ppm)

TDS Factor adjustable, e.g. to commonly used 0.500 or 0.700

Temperature: -5.0...+80.0 °C

Operating conditions:

Device: -20..+50 °C, 0..95 % r.h. (non-condensing)

Sensor: -5..+80 °C

Power supply:2x AA battery, >1000 h battery life

Protection type:IP65 / IP67

Weight:200 g

Accuracy:Conductivity up to 2000 µS/cm: typ. ± 1 % of value ± 0.5 % FS

Temperature: ±0.3 °C

Temperature compensation: Off: deactivated ; nlF: non linear, acc. To EN 27888

Cable:Measuring cell with 1.1 m cable, permanently connected

Current supply:2 x AA batteries

Measuring cell:LF 209, 2 pole titanium/plastic

Measuring ranges:0 ... 5000 µS/cm, 0 ... 2000 mg/l

Range of application:Device: -20 ... +50 °C, measuring cell: -5 ... +80 °C

Scope of delivery:Device incl. measuring cell, manual, battery, test protocol

Set-Option:Device, measuring cell LF 209, fix mounted
