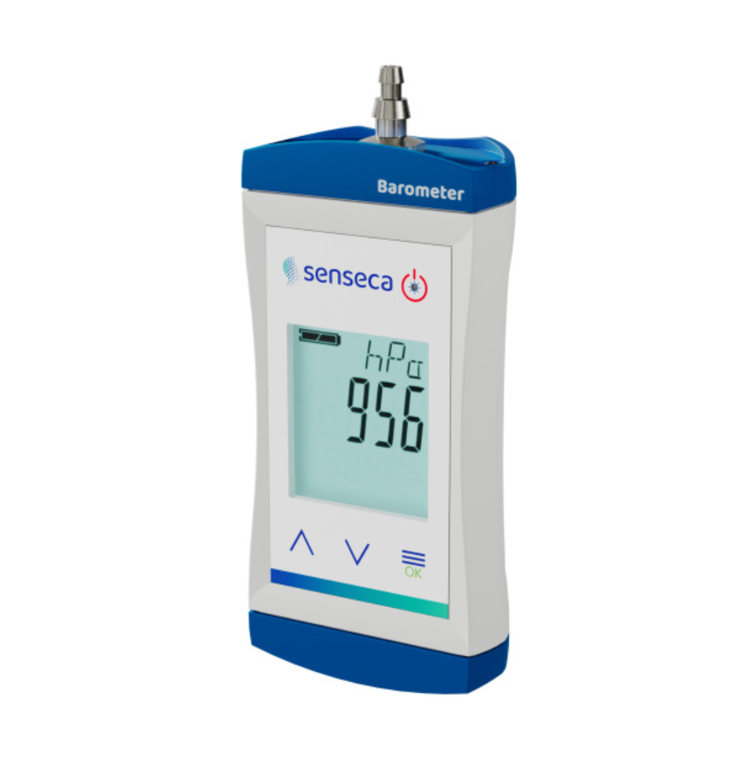

Senseca ECO 240-2-UT-WPD Vacuum / Barometer with pressure port (0 ... 14000 hPa (mbar))

Pressure connection:G1/8 inch port incl. connection for tube 6x1 mm (4 mm inner) or 8x1 mm (6 mm inner)

Set-Option:Device, incl. 1 m tube 6x1 PVC, case GKK 1002, factory calibration WPD5, not DAkkS accredited

Additional functions:Sea level correction, NULL/Tare function, AVR: Averaging over 2 s / 5 s / 10 s

Adjustment:Zero point and slope

Connections:one tube connection, interchangeable with G1/8 universal port

Dimensions:108 x 54 x 28 mm without pressure connection

Display:3-line segment LCD, additional symbols, illuminated (white, illumination time adjustable), overhead display on key press

Display units:hPa, mbar, bar, PSI, mmHg (Torr)

Error: max. (-20 ... 50 °C)± 0.1 % FSS ± 0.5 % of value

Housing material:Break-proof ABS housing

Max. overload:20000 hPa abs.

Measurement rate:Slow: 2.5 measurements per second, Fast: 25 measurements per second

Measurements:Absolute pressure

Operating conditions:-20 ... +50 °C; 0 to 95 % r.h. temporarily 100 % r.h.)

Precision typ. @ 25 °C:± 0.02 % FSS +/-0.1 % of value (@ 25 °C)

Protection type:IP 67

Standard functions:Min / Max / Hold, auto-Power-Off-function / if activated, the product switches off automatically

Storage temperature:-20 ... +70 °C

Weight:140 g incl. battery

Measuring range:0 ... 14000 hPa (mbar)

Current supply:2 x AA batteries

Working temperature-20 ... +50 °C

 Datasheet

Manual
