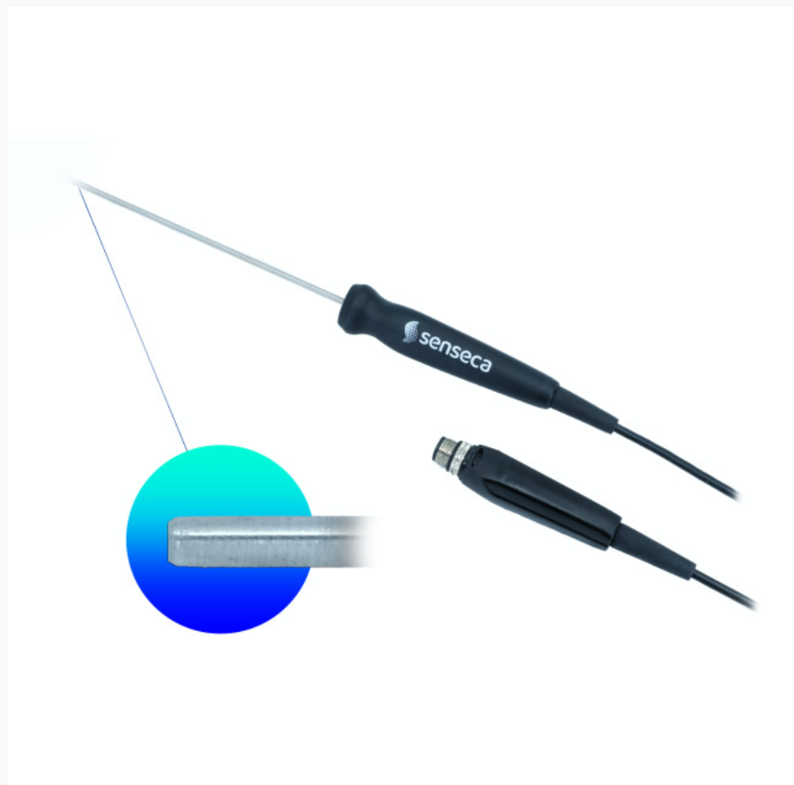

Senseca DX 121-00-130-L01 Digital Pt100 immersion probe, large handle (- 196...+ 500 °C, 0.01°C)

Applications:Immersion

Dimensions:Stem: Ø3 mm, L=130/230/300 mm (other lengths on request)

Handle length: 98 mm

Cable: Ø4 mm, L=1. 2 or 5 m

Materials:Stem: AISI 316

Handle: Polyamide (PA6-GF30)

Cable: PVC (-20...+105 °C)

Output:UART (TTL 3.3V)

Power consumption:<1 mA typ.

Power supply:3.3…6 Vdc

Protection degree:IP67

Response time:3 s

Weight:110 g approx. with 2 m cable

Connection:4-pole M12

Measuring range:- 196...+ 500 °C

Resolution:0.01 °C

Cable and length:2 m PVC cable, -20 ... +105 °C

Calibration:Factory adjustment, exchangeable

Diameter probe tube:Ø3 mm

Model:Immersion probe, blunt

Probe length:300 mm
