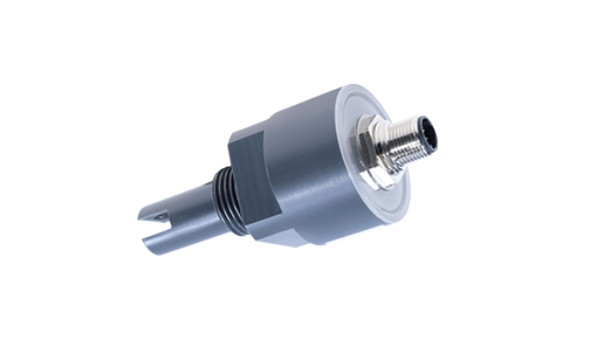

Senseca CONDIX4613 Digital Conductivity-Converter (0..20 µS/cm ~ 0..200 mS/cm)

Supply voltage : 4,7..28 V DC, max. 60 mA

CE-conformity : EN 61326-1:2013 / EN 61326-2-3:2013

Inputs: Cell constant : C = 0,4 1/cm (exact cell constant labelled on the type plate)

Measuring range

Conductivity : 0..20 µS/cm up to 0..200 mS/cm

Temperature : -50..+200°C

Basic accuracy

Conductivity : 1% of the measuring value

Temperature : 0.2 K

Linearization errors

Temperature : 0.1%

Operating temperature : 0..+60 °C

Ambient temperature : -10..60 °C

Storage temperature : -10..60°C

Condensation : not allowed

Climate classification : EN 60068-2-38:2010-6

Vibrations : EN 60068-2-6, GL test 2

Process connection : pipe thread DIN ISO
