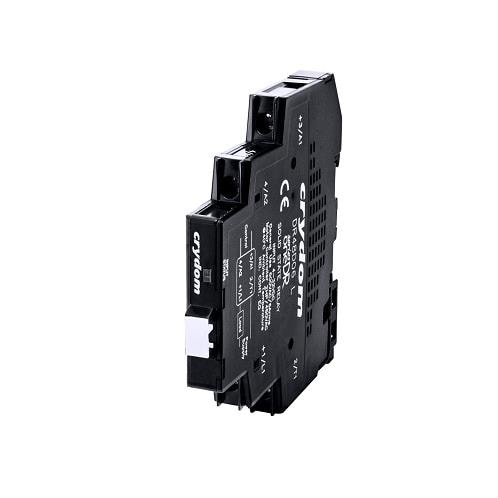

Sensata Technologies - Crydom DR10D10 Indicator SOLID STATE RELAY
ModelDR10D10
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 11 mm
Height: 83.7 mm
Length: 87.6 mm
Input Current: 9 mA to 11 mA
Mounting Style: DIN Rail Mount
Termination Style: Screw
Relay Contact Form: 1 Form A (SPST-NO)
Load Current Rating: 10 A
Load Voltage Rating: 1 VDC to 100 VDC
Control Voltage Range: 4 VDC to 32 VDC
Maximum Operating Temperature: + 80 C
Minimum Operating Temperature: - 30 C
