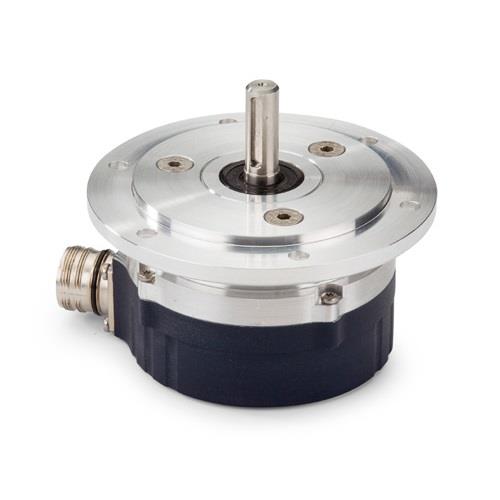

Sensata Technologies - BEI Sensors DSM912-2048-002 Incremental 90MM 12MM dia shaft, 11 - 30 Vdc supply and PP 11-30 Vdc Output, Dual Quadrature with Index, 02048 ppr, Radial Cable termination - 12 cond. 2.0 M, With shaft key

Resolution: 2048 PPR

Shaft Type: Round / Plain

Technology: Rotary

Output Type: Quadrature with Index

Unit Weight: 1 kg

With Switch: Push/Pull Switch

Bushing Size: 40.7 mm x 5 mm

Cable Length: 2 m

Shaft Length: 30 mm

Mounting Style: Servo Mount

Shaft Diameter: 12 mm

Size / Dimension: 90 mm x 93 mm

Number of Detents: No Detent

Termination Style: Screw

Operating Supply Voltage: 11 VDC to 30 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 20 C
