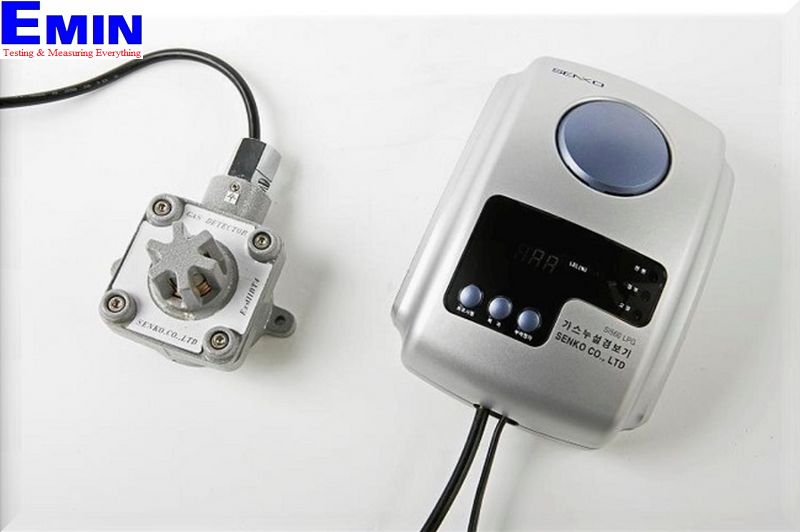

SENKO SI560LPG Gas alarm for building & Restaurant (with controller)

Manufacturer: Senko
Made in Korea
Model: SI560LPG
Gas Leak Detector:
Detecting gas: LPG
Detecting range: 0~100% LEL
Sensor type: Catalytic
Sampling method: Diffusion
Response time: 15 sec / T90
Accuracy ± 3% / Full Scale
Power: 18~31V DC (24V DC normal)
Output: 4-20mA
Operating temp. & Humi: -20℃ ~ +50℃, : 0% ~ 95% RH (non-condensing)
Explosion proof: Ex d IIB T4
Dimensions: 130mm(W)×107mm(H)×73mm(D)
Weight: 0.6 kg
Receiver For Gas Leak Detector:
Powe: AC 220V, 60Hz/9W
Density to alarm: 20% LEL
Power led : LED green light
Alarm sign : LED yellow light and buzzer sound
Breakdown: LED red light
Dimension: 140×200×78 mm
Output signal: Voltage : 12V,Relay: COM, NO, NC
Weight 1.5Kg
